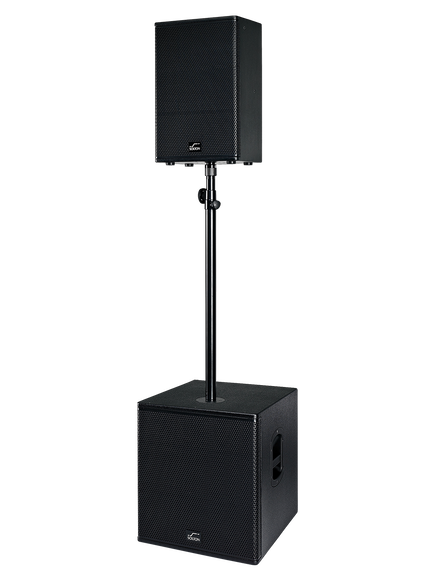

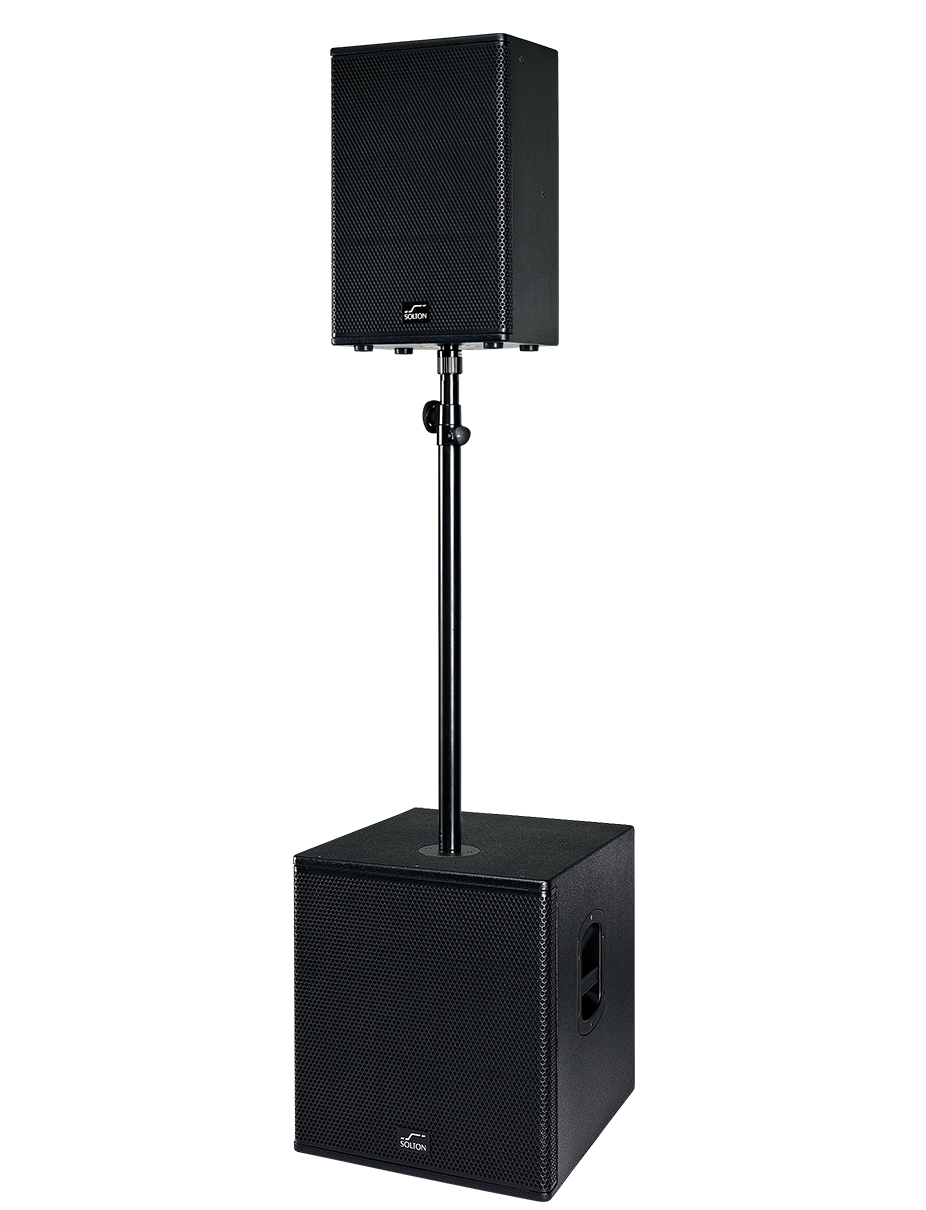

TWA 15 CLASSIC SYSTEM
A powerful active System!
HD 101 + TWA 15 Sub
Art. Nr. 10808
TWA 15 Classic dual System
2x HD 101 + 2x TWA 15 Sub
SPECIFICATION Sub
Loudspeaker Type
Self-powered, Single15", bass-reflex, subwoofer
Frequency Range (-10dB) 35 Hz -200 Hz
Frequency Response (+- 3dB) 40 Hz - 150 Hz
Coverage Pattern Omni
Power Handling TOP 350 W cont 4ohm, 1050 W max / SUB 500 W cont, 1500 W max
System Sensitivity (1w/1m) 99 dB
Maximum SPL (Calculated at 1m) 127 dB continuous, 133 dB peak
LF Driver 15", aaCRAAFT, Long stroke 4" voice coil woofer
Crossover Active / DSP
Protection Limiter
Active Tuning / Features
5 DSP presets, Multi Bluetooth, Micophone switchable
Enclosure 15 mm birch plywood
Finish Black polyurea coating
Fittings 2 x Handles, M20 pole socket, 75mm wheels mounted
Protective Grille Black perforated steel with acoustic transparent foam backing
Connectors Line A/B Jack/XLR Combo, Mix out XLR
Dimensions mm (WxHxD) 475 x 530 x 620
SPECIFICATION Sat
Loudspeaker Type Two-way, Passive
Frequency Range (-10dB) 55 Hz - 20 kHz
Frequency Response (+- 3dB) 65 Hz - 18 kHz
Coverage Pattern H 90° x V 60° nominal (user-rotatable)
Power Handling 300 W continuous, 1200 W peak
System Sensitivity (1w/1m) 98 dB
Maximum SPL (Calculated at 1m) 123 dB continuous, 129 dB peak
HF Driver 1,75" voice coil, 1" exit compression driver
LF Driver 10", 2" voice coil speaker
8 ohms Crossover 2,7 kHz
Protection PTC driver protection
Enclosure Multi-angle, 15 mm birch plywood
Finish Black textured paint
Fittings 7x M8 inserts, 1x bar handle, pole-mount socket, U-bracket optional
Protective Grille Black perforated steel with acoustic transparent foam backing
Connectors 2 x NL4, Pins 1+/1-
Dimensions mm (WxHxD) 320 x 518 x 293
Weight 13 kg
Pole Mount and Cables Included
