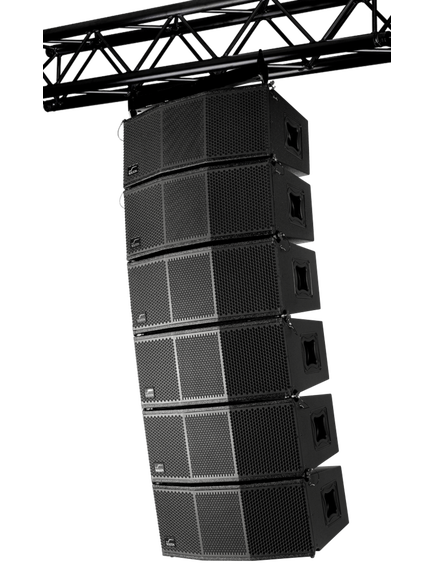

SL 210
The SL 210 is a 2-way, full range line array cabinet that combines superior sound quality with easiness and flexibility in a simple system.
With a 100°H x 10°V nominal directivity pattern it combines high output capability with excellent sound performance in a compact enclosure, made of 15/21 mm birch plywood.
It features two powerful 10” / 2,5” voice coil Neodym drive units for the mid-bass range, and one Beyma Neodym low-distortion compression driver with a 2,88” voice coil and 1,4“ exit for extended high frequency response.
The line wave-forming waveguides of HF driver is hornloaded.
An advanced passive crossover, with PTC driver protection, matches the components working perfectly together.
The SL 210 vertical line array element is suited to a wide variety of mobile and installed applications where a flexible and easy to use vertical array systems is needed. Flying and Stacking operation possible.
Specifications
Loudspeaker Type Two-way, passive, fullrange, line array element
Frequency Range (-10dB) 55 Hz - 20 kHz
Frequency Response (+- 3dB) 60 Hz -18 kHz
Coverage Pattern H 100° x V 10° nominal
Power Handling 800 W continuous, 3200 W peak
System Sensitivity (1w/1m) 103 dB
Maximum SPL (Calculated at 1m) 132 dB continuous, 138 dB peak
HF Driver 3" VC Beyma Neodym compression driver, horn loaded with waveguide
LF Driver 2 x 10", 2,5" VC Neodym
Nominal Impedance 8 ohms
Crossover 1.000 kHz, passive
Protection PTC driver protection
Enclosure 15/21 mm birch plywood
Finish Black polyurea coating, IP 54
Fittings 3x Handles, Integrated 3 Point quick lock rigging system
Protective Grille Powder coated, black perforated steel with acoustic cloth inside
Connectors 2x Speakon NL 4, 1+/1- / 2+/2- to Sub
Dimensions mm (WxHxD) 680 x 294 x 430
Weight 23 kg
KEY FEATURES
Bullet point High output Line Array element
Bullet point Passive operation
Bullet point Stacked operation possible
Bullet point Fullrange capability
Bullet point High quality, low distortion HF compression drivers
Bullet point Very stable horizontal coverage
Bullet point Advanced crossover with HF protection
Bullet point Fast, 3-point flying rigging system for up to 12 enclosures
Bullet point Compact size
Bullet point Only 23 kg
SPECIFICATION
APPLICATION
Bullet point Theaters
Bullet point Arenas and stadiums with reasonable speaker quantity
Bullet point Medium size festivals
Bullet point Clubs
Bullet point Corporate events
Bullet point Contemporary churches
