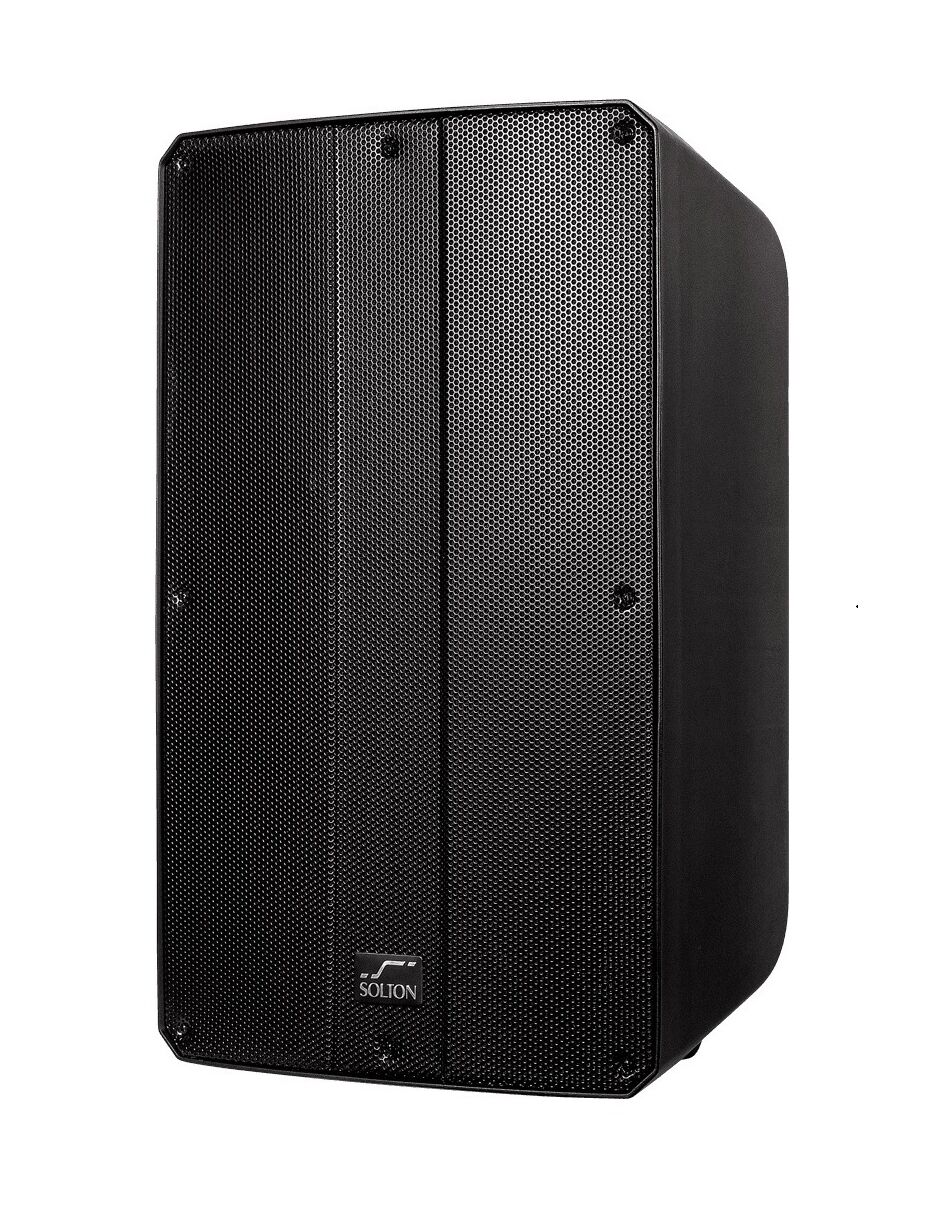

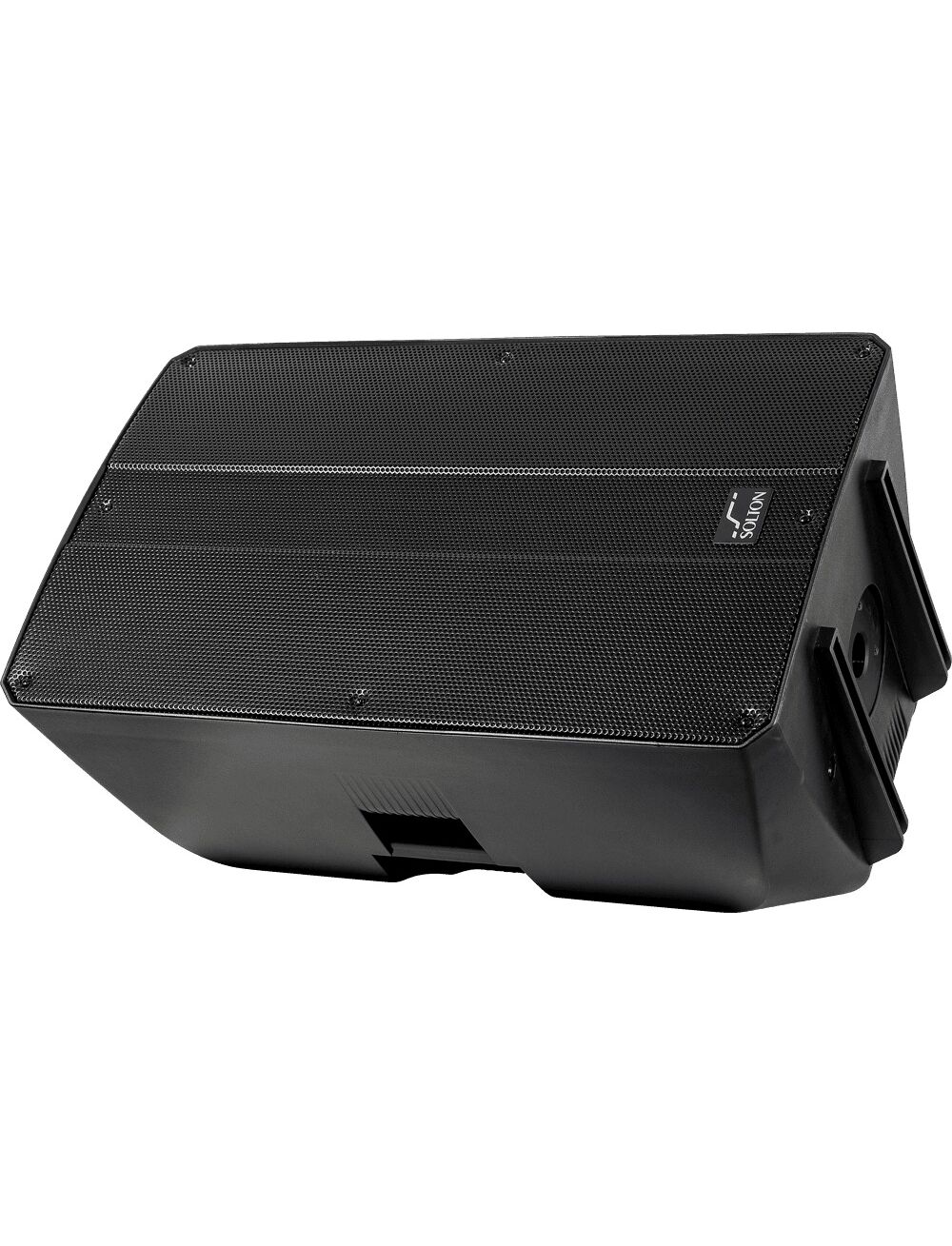

The HD 12 P is a passive 2-Way high-performance multipurpose loudspeaker system, designed for professional portable applications and installations demanding the ultimate in sound performance from a single enclosure. With a 90° x 60° coverage pattern it combines very high output capability with excellent sound performance and impact.It features a powerful 12” / 3” voice coil LF drive unit, and a HF compression driver with a 1,75” voice coil for extended high frequency response.The versatile HD 12 P suits for speech and music applications as a stand-alone fullrange loudspeaker or MF/HF speaker in sound reinforcement systems. The speaker is waterproof and therefore perfect for outdoor use.
Key Features
High-class performance in a compact design- Vertical and horizontal orientation
- Main and monitor operation possible
- Neodym 12" speaker
- Outdoor use
Specifications
- Type Two-way, Passive
- Frequency Range (-10dB) 50 Hz - 20 kHz
- Frequency Response (+- 3dB) 60 Hz - 18 kHz
- Coverage Pattern H 90° x V 60° nominal
- Power Handling 400W continuous, 1600 W peak
- System Sensitivity (1w/1m) 98 dB
- Maximum SPL (Calculated at 1m) 124 dB continuous, 130 dB peak
- HF Driver 1,75" voice coil, 1" exit compression driver
- LF Driver 12", 3" voice coil neodym, weather protected speaker
- Nominal Impedance 8 ohms
- Crossover 2,7 kHz
- Protection PTC driver protection
- Enclosure Multi-angle, PP composite
- Finish Black, weather resistant, IP54
- Fittings 2x handle, pole-mount socket
- Protective Grille Black perforated steel with acoustic transparent foam backing
- Connectors 2 x NL4, Pins 1+/1-
- Dimensions mm (WxHxD) 365 x 605 x 360
- Weight 14 kg
- EAN / GTIN 4262552320326
Application
- Bars and restaurants
- Live Music
- Outdoor installation
- Portable sound reinforcement
- Nightclubs
- Stage monitoring
- Corporate AV events and conferences
