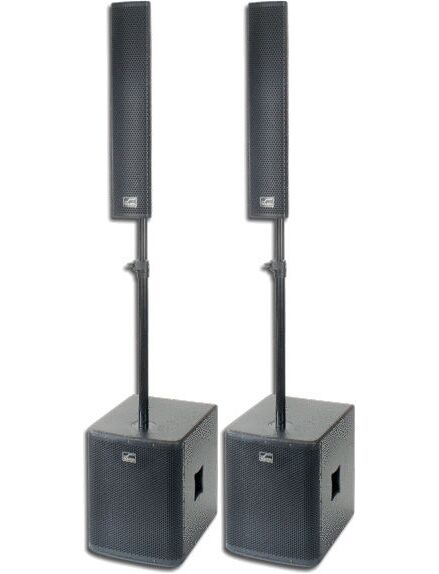

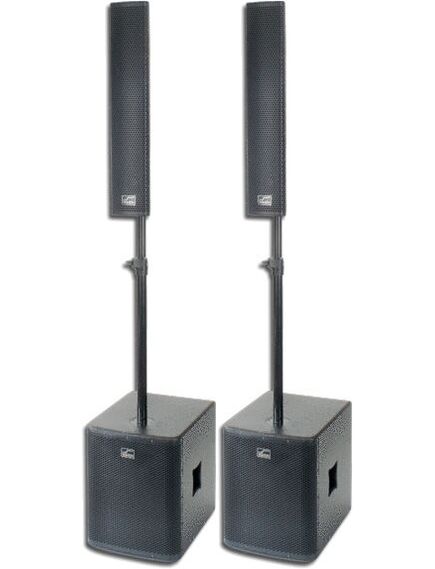

Twin Array 15
»DIGITAL AMPS (ICEpower®)
»AUDIO DSP
»SLIM DESIGN
»LIGHT WEIGHT
»SIMPLE TRANSPORT
The TWINARRAY's active PA systems with elegant design are equipped with modern technology. The finest sound quality with cylindrical dispersion characteristics (line array principle) ensures a clean and natural reproduction for music and voice, even in acoustically difficult rooms. Homogeneous and pleasant sound in the near field and clean.
CT-5
Equipped with 4 pcs. 5 "speakers, in array function and 1 pc. Ribbon Neodym drivers.
Now available in white. CT-5 W
Power RMS 320 watts
Power Max 640 watts
Impedance 4 Ω
SPL 95/126 dB max.
Components High Ribbon Driver
Component center (low) 4x 5 "woofer
Transition frequency 2.5 kHz
Cover angle
Vertical: 15 °
Horizontal: 120 °
Frequency response 65 Hz - 30 kHz
Protection PTC driver protection
Connection 1x connector
Material plywood
Color Black lacquer
Dimensions mm (WxHxD) 170x860x180
Weight 8 kg

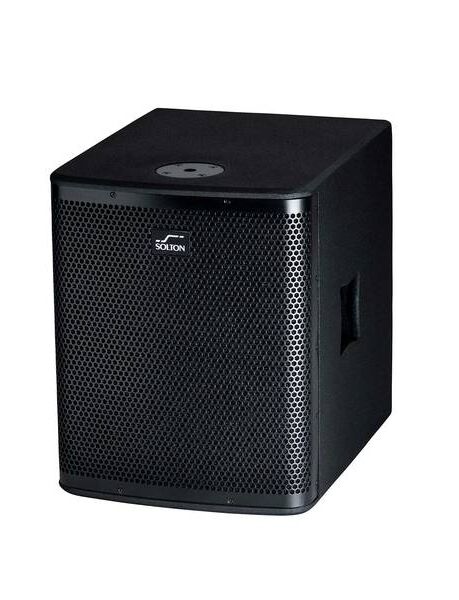

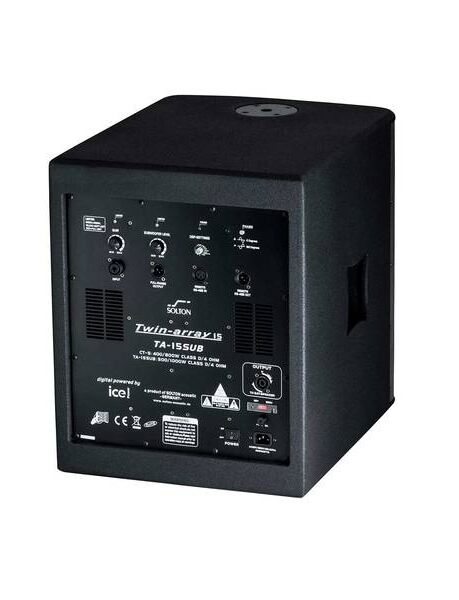

TA-15 Sub
Frequency response 45 Hz - 130 Hz (variable) Bass
Components low
15" aa CRAAFT
Special long-stroke woofer
3 "voice coil
Material multiplexer
Finish Black lacquer
Handle 2
Flange M 20
Weight 29.5 kg
Dimensions mm (WxHxD) 420 x 540 x 550
»1x 500/1000 Watt ICEpower® Digital Amplifier for 15" Sub
»1x 400/800 Watt ICEpower® Digital Amplifier for Top CT-5
»Lowest cut-off frequency 45 Hz
Facts
»Input with gain control
»Subwoofer level

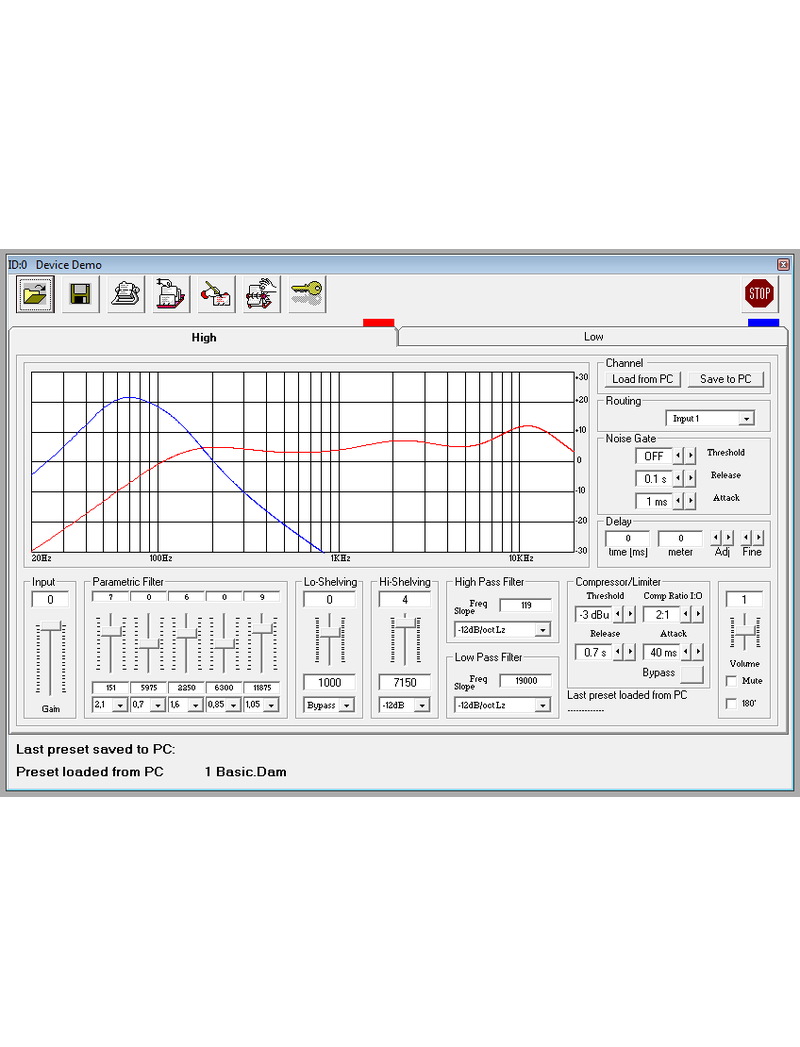

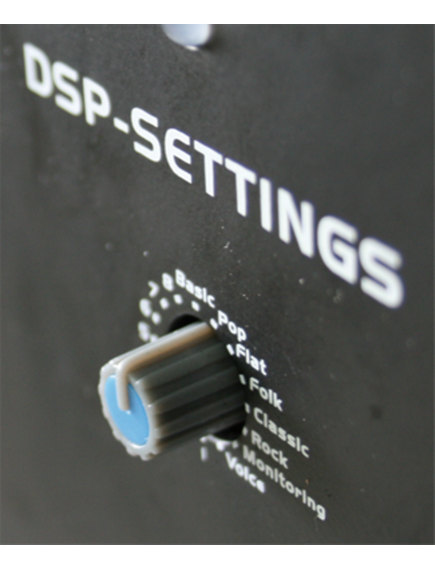

»DSP settings (8 fixed sound programs and
8 Free program settings by customer)
»DSP settings in real-time
»Full range performance
»USB / RS-485 remote control
»Phase switch
»Loudspeaker output to Sat
"Limiter
»In / Out for RS-485 remote control
»Fixed sound programs:
Basics, Pop, Flat, Folk, Classical, Rock, Monitoring, Voice
»Download additional sound programs or create your own sound program
