Twin Array 12
»DIGITAL AMPS (ICEpower®)
»AUDIO DSP
»SLIM DESIGN
»LIGHT WEIGHT
»EASY TRANSPORT
The TWIN ARRAYs active PA systems with an elegant design are equipped with modern technology. Finest soundquality with cylindrical dispersion characteristics (line array principle) provides a clean and natural reproduction for music and voice, even in acoustical difficult rooms. Homogeneous and pleasant sound in the near-field and clean.

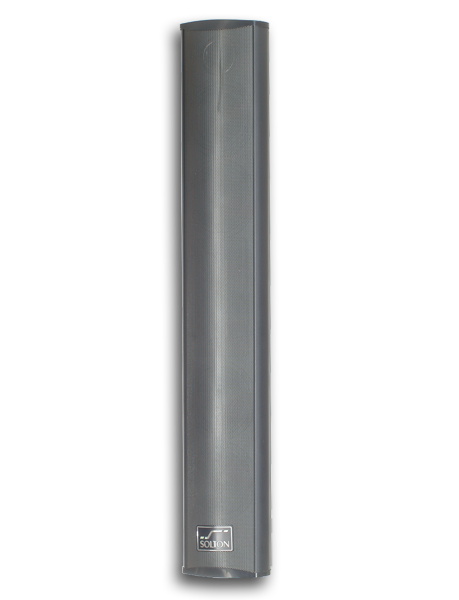

CT-4
Equiped with 4 pcs. 4 "speakers, in array function and 1 pc. Ribbon neodym driver.
Available now also in White. CT-4W
Power RMS 280 Watt
Power Max 560 Watt
Impedance 4 Ω
SPL 92/124 dB max.
Components High Ribbon Driver
Components Mid (Low) 4x 4 "Woofer
Crossover frequency 2.5 kHz
Coverage angle
Vertical: 15 °
Horizontal: 120 °
Frequency response 70 Hz - 30 kHz
Protection PTC driver protection
Connection 1x Speak connector
Material Alu
Color Black
Dimensions mm (WxHxD) 140x820x120
Weight 5.5 kg
"Sensitivity 92dB \ W \ 1m
»Maximum RMS Soundpressure 124 dB in 1 meter
»Maximum peak sound pressure 126 dB in 1 meter
»Maximum power 400 Watts 0.1% THD

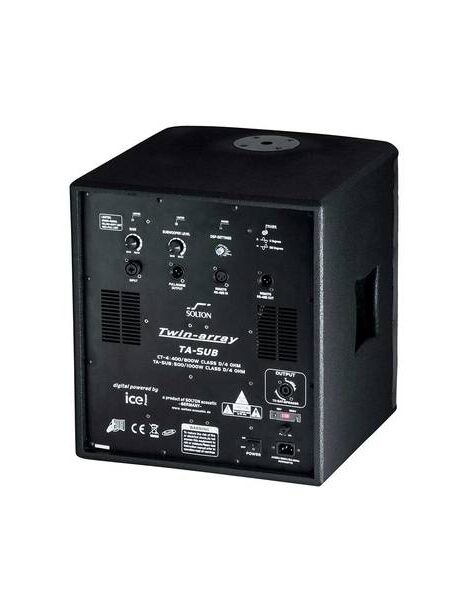

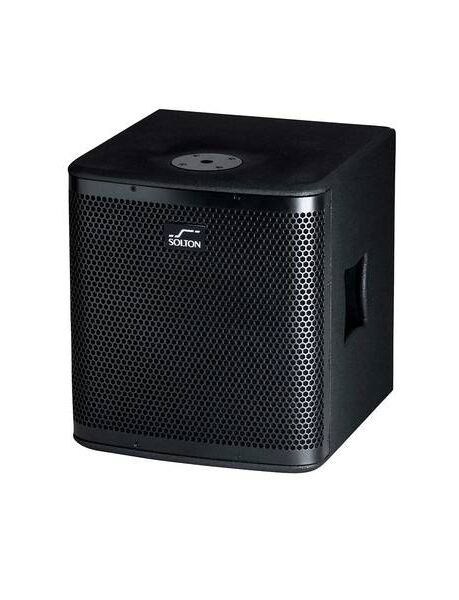

TA-12 Sub
Frequency response 50 Hz - 130 Hz (variable) Bass
Components Low
12" aa CRAAFT
Special long stroke woofer
3 "voice coil
Material multiplex
Finish Black lacquer
Handle 2
Flange M 20
Weight 21 kg
Dimensions mm (wxhxd) 400 x 440 x 400
»1x 500/1000 watt ICEpower® digital amp for 12" Sub
»1x 400/800 watt ICEpower® digital amp for Top CT-4
"Sensitivity 98dB \ W \ 1m
»Maximum RMS Soundpressure 124 dB in 1 meter
»Maximum peak sound pressure 127 dB in 1 meter
»Maximum power 500 Watts 10% THD
»Lowest cutoff frequency 50 Hz
Facts
»Input with gain control
»Subwoofer level

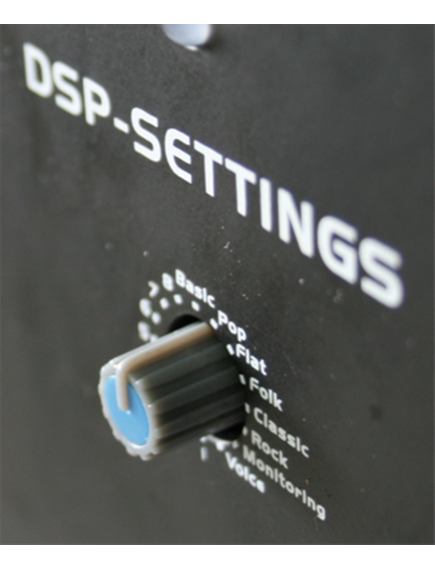

»DSP-settings (8 fixed soundprograms and
8 free-program settings by customer)
»DSP settings in realtime
»Full-range output
»USB / RS-485 remote control
»Phase switch
»Speaker output to Sat
"Limiter
»In / out for RS-485 remote control
»Fixed soundprograms:
Basic, Pop, Flat, Folk, Classic, Rock, Monitoring, Voice
»Download more soundprograms, or create your own soundprogram
