RB 82 Specification
Cabinet Line Array
Rated Power RMS 500 Watt
Program Power 1000 Watt
Frequency response 70 Hz - 20 kHz
Impedance 8 Ω
Components High Ribbon
Components Mid (Low) 2x 8" aa CRAAFT
Sound Pressure (1W/1m) 98 dB
Max. SPL 128 dB
Dispersion (HxV) 100° x 10°
Voice Coil Protection PTC driver protection
Finish Black lacquer
Material Multiplex
Connectors 2x speak / 4 pole
Flying Hardware Yes
Dimensions mm (HxWxD) 270 x 740 x 320
Weight (kg) 18,5
Information RB 82

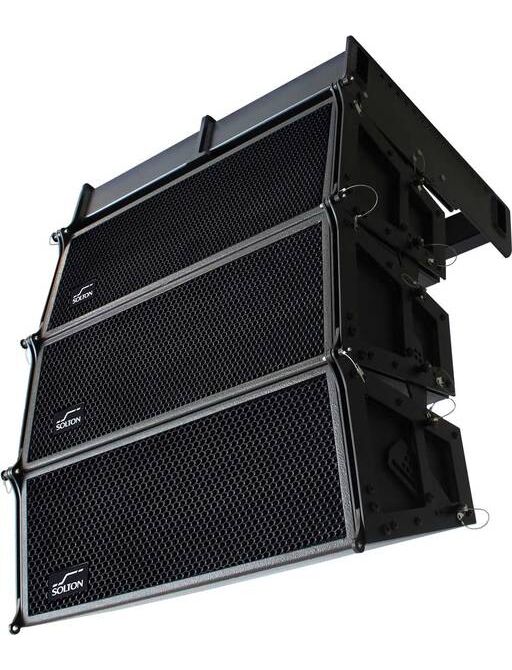

The RB 82 equiped with 2 pcs. 8” aa CRAAFT highpower speakers and 1 pc. high quality neodym RIBBON horn driver guarants a brilliant and natural sound. The precise made flying-hardware allows a quick and simple setup of the system and to reach with step by step setting of 1° the requested curving. For down-stacking in combination with PRO-Sub 18/800 we offer the FCR 82 cradle. FCR 82 cradle possible to use on floor and for to fly till 4 pcs. RB 82.
Angle adjustment from 0° to 12° between each cabinet.
Pro-Sub 18/800 Specification
Cabinet Subwoofer
Rated Power RMS 800 Watt
Program Power 1600 Watt
Frequency response 40 Hz - x-over
Impedance 8 Ω
Components Low 18" Woofer / 4" VC aa CRAAFT
Sound Pressure (1W/1m) 100 dB
SPL Max. 129 dB
Finish Black lacquer
Material Multiplex
Connectors 2x speak / 4 pole
Handles 2
Flange M 20
Wheels 4 (rear side possible)
Dimensions mm (HxWxD) 510 x 750 x 590
Weight (kg) 52
Information Pro-Sub 18/800
Powerfull and solid bassreflex cabinet 1 pc. 18” Soundbull aa CRAAFT speaker with real punching foundation-bass. Additional possible to fit wheels on rearside.
On request we offer for each Array system especially configurated Rack-systems, fitted and completely connected.
EASE Files
Get EASE files for your
Line Array (RB 82 & PRO Sub 18/800)
System Downstack
System Downstacks
Downstack RB 82-1
TOP:
2x 2 RB82
SUB:
2x 2 Pro Sub 18/800
AMPING:
1x Controller DSP 206
2x Amp. QX 2400 , or 1x DX 4
2x FCR 82
Total Speaker Power 5.200 W RMS
Downstack RB 82 -2
TOP:
2x 3 RB82
SUB:
2x 2 Pro Sub 18/800
AMPING:
1x Controller DSP 206
1x Amp. DX4
2x FCR 82
Total Speaker Power 6.200 W RMS
Recommended Systems
Flown Systems
RB 82 System 1
TOP:
2x 4 RB 82
1x Amp. DX 4
SUB:
2x 4 Pro Sub 18/800
1x Amp DX 4
1x Controller DSP 206
2x FCR 82, or 2x FLC 82
Total Speaker Power 10.400 W RMS
RB 82 System 2
TOP:
2x 6 RB82
1x Amp. DX 4
SUB:
2x 2 A218 (1) or 2x 4 Pro Sub 18/800 (2)
1x Amp. DX 4
1x Controller DSP 206
2x FCR 82, or 2x FLC 82
Total Speaker Power 14.000 W RMS (1); or 12.400 W RMS
RB 82 System 3
TOP:
2x 8 RB82
2x Amp. DX 4
SUB:
2x 2 A218
1x Amp. DX 4
1x Controller DSP 206
2x FLC 82
Total Speaker Power 16.000 W RMS
RB 82 System 4
TOP:
2x 9 RB82
SUB:
2x 6 Pro Sub 18/800
3x Amp. DX 4
1x Controller DSP 206
2x FLC 82
Total Speaker Power 18.600 W RMS
RB 82 System 5
TOP:
2x 12 RB82
2x Amp. DX 4
SUB:
2x 8 Pro Sub 18/800 (1) or 2x 4 A218 (2)
2x Amp. DX 4
1x or 2x Controller DSP 206
2x FLC 82
Total Speaker Power 26.400 W RMS (1), or 28.000 W RMS (2)
Option: for more flexibility the amping could be splittet in 2 racks.
