Supports 1024 DMX channels
Supports 1526 Art-Net channels
Control via USB or Wi-Fi
Supports up to 16 scenes over 4 zones
Compatible with various apps and operating systems

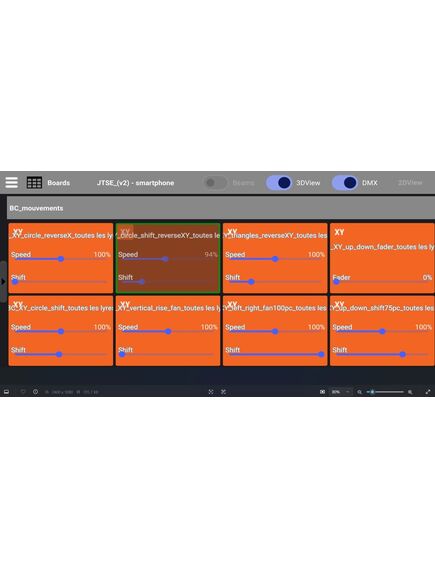

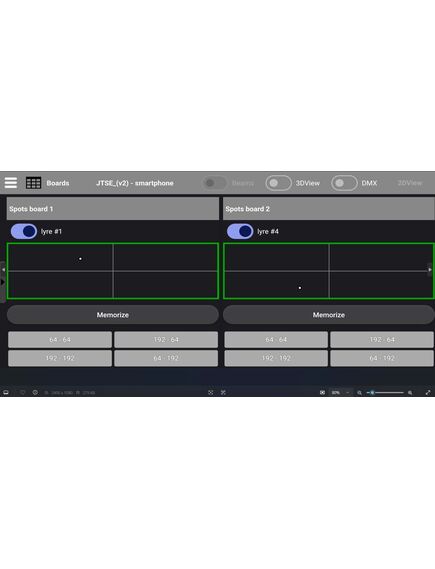

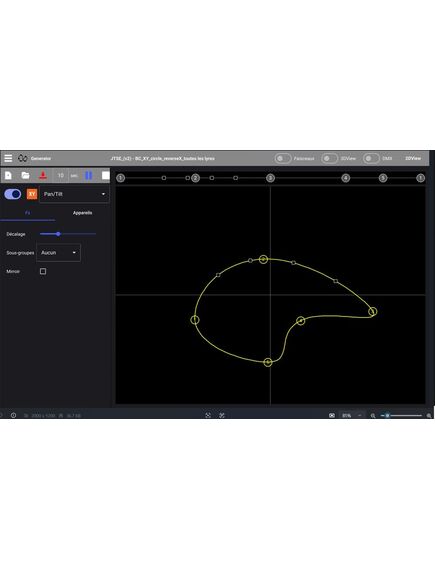

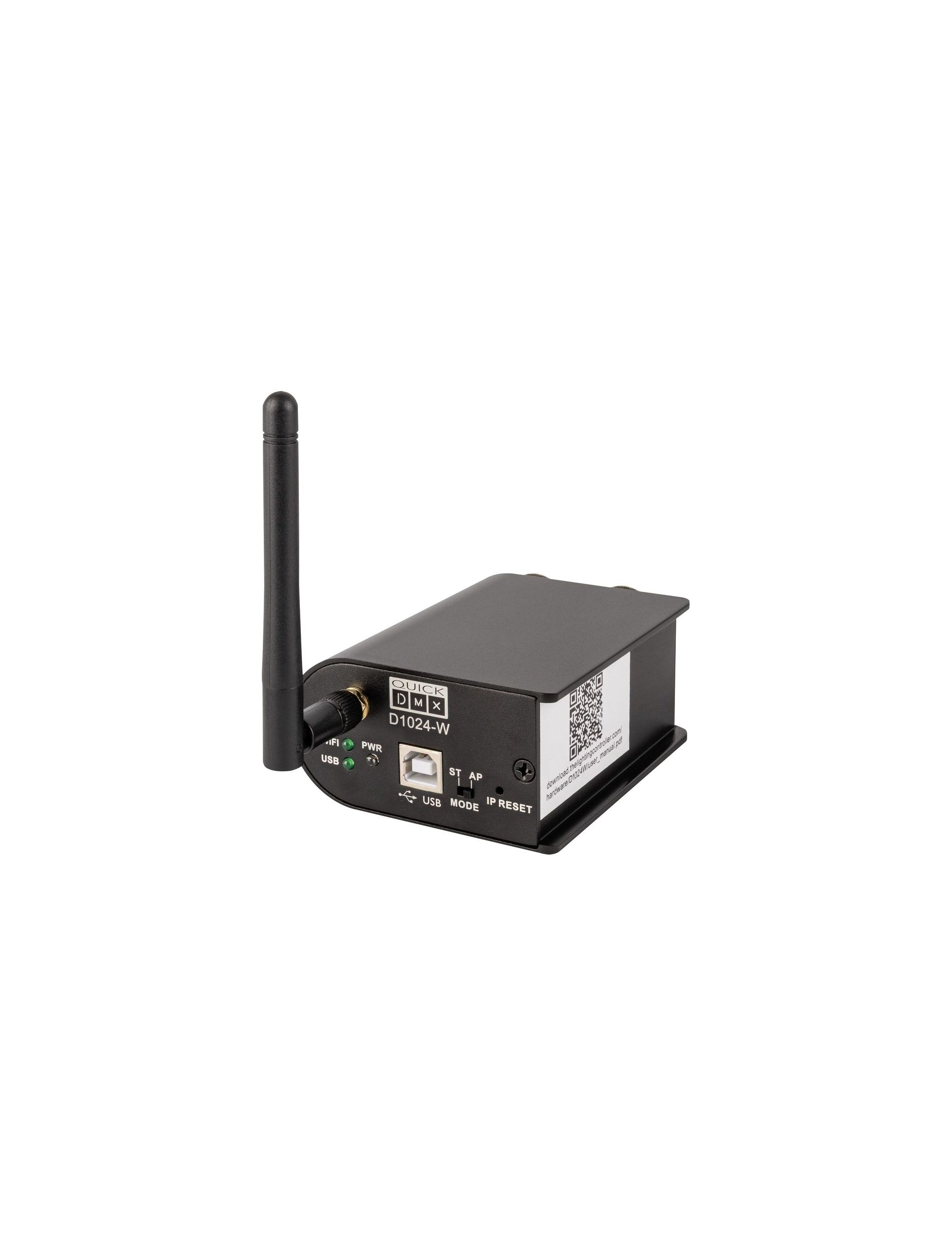

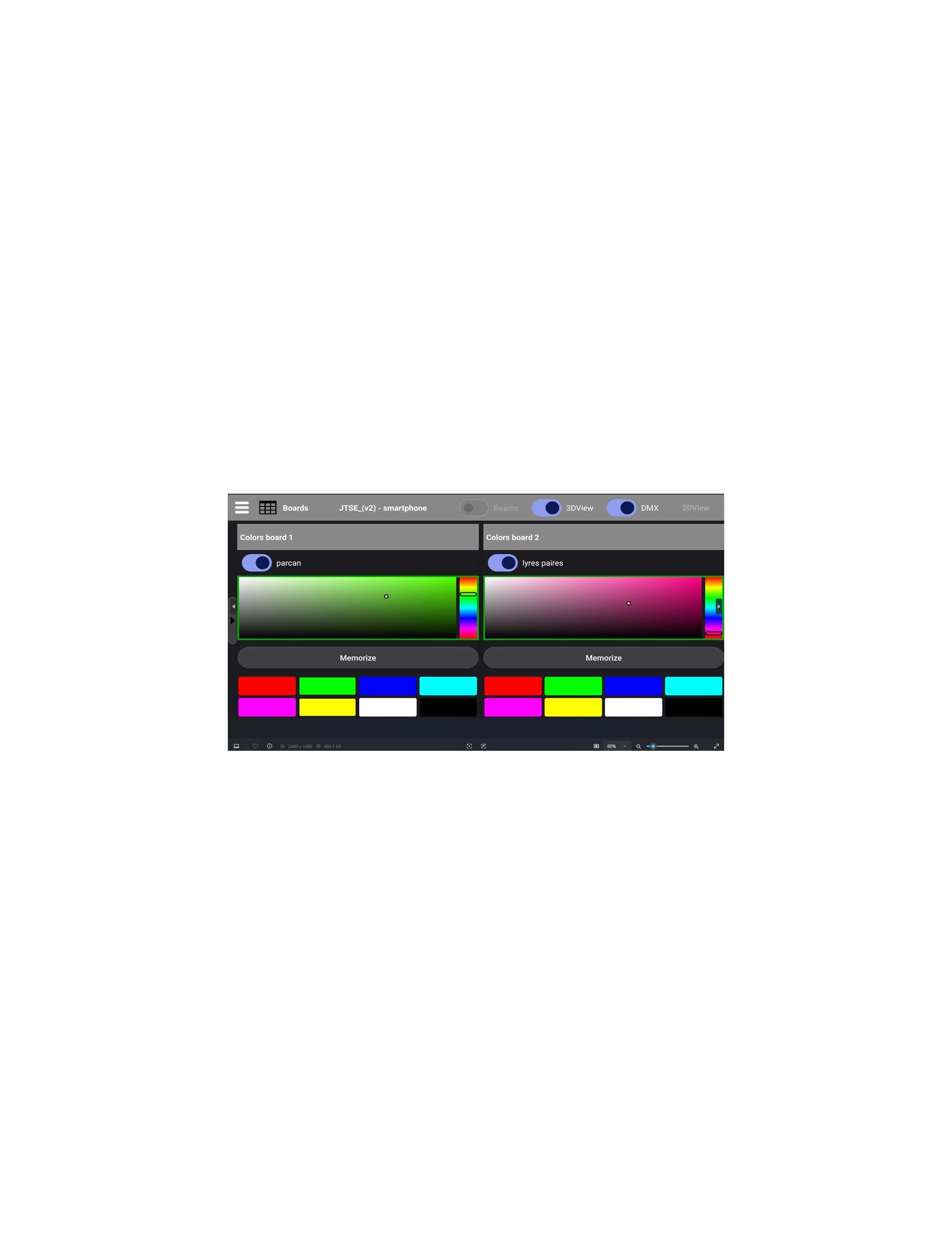

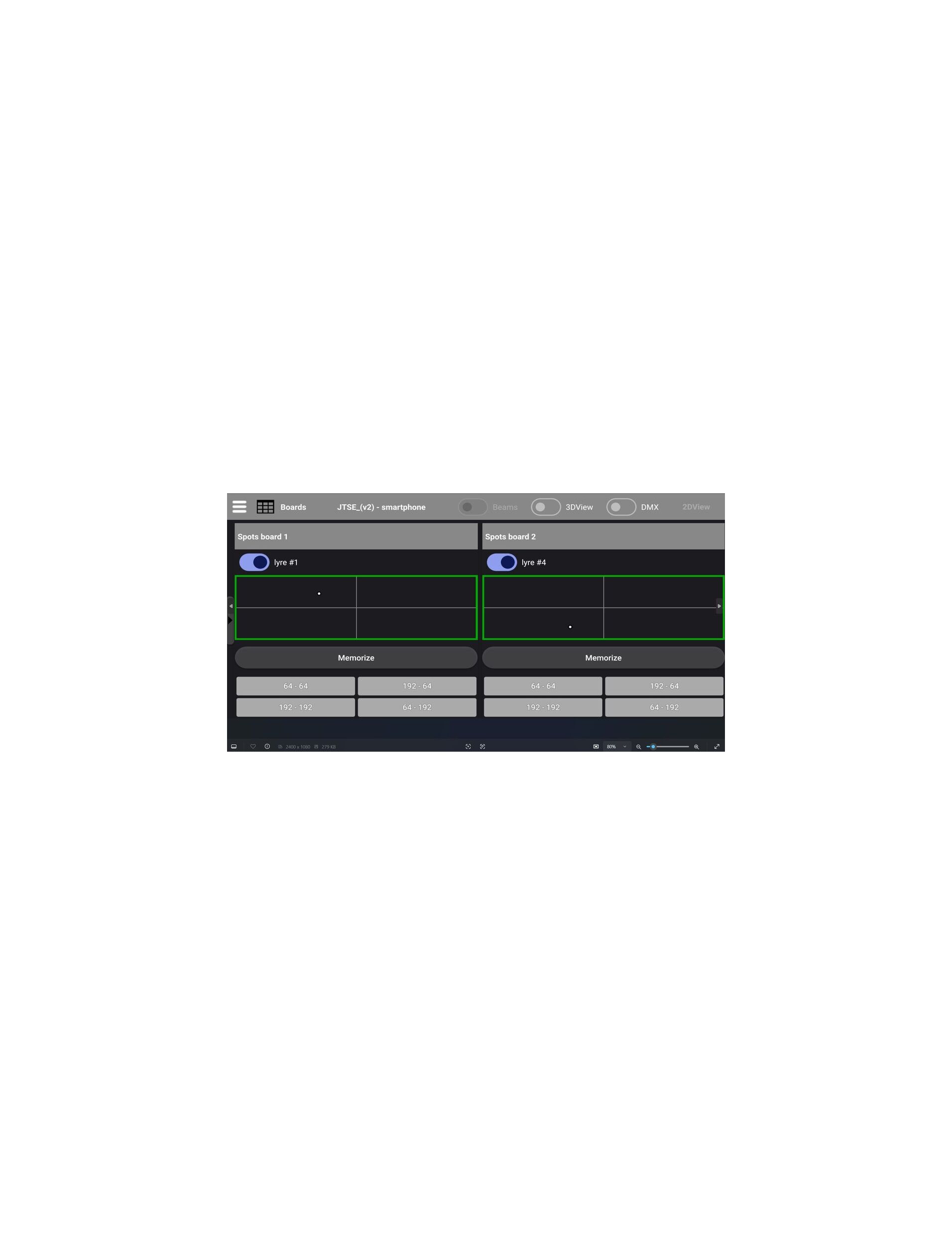

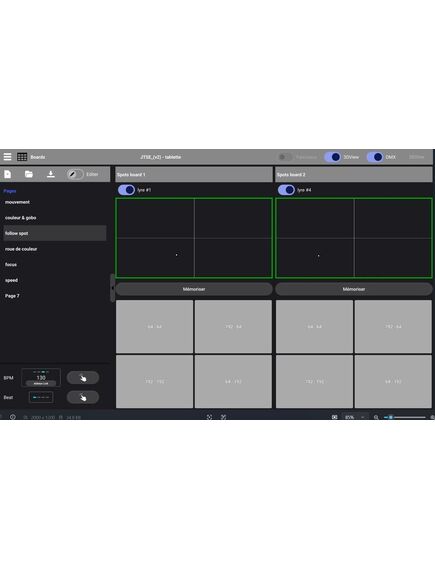

The Quick DMX D1024-W supports 1024 (2x 512) DMX channels and 1536 Art-Net channels through the Quick DMX software via USB or Wi-Fi. It is able to play up to 16 scenes over 4 different zones with high-resolution (16-bit) channel management, without a computer. The scenes can be triggered by Android or iOS apps as well as by Ethernet messages from a 3rd party app. The Quick DMX D1024-W DMX interface is compatible with Windows, macOS, Linux, Raspberry Pi, Android and iOS.
Software Specifications
Supported Operating Systems
Android, iOS, Linux, Mac, Windows
Control and Programming
Control Mode
DMX
DMX Channels
1024
Wireless
Wifi
Universes
2
Electrical Specifications and Connections
Power Supply
5 V DC
Power Consumption
5 W
Power Connector In
USB

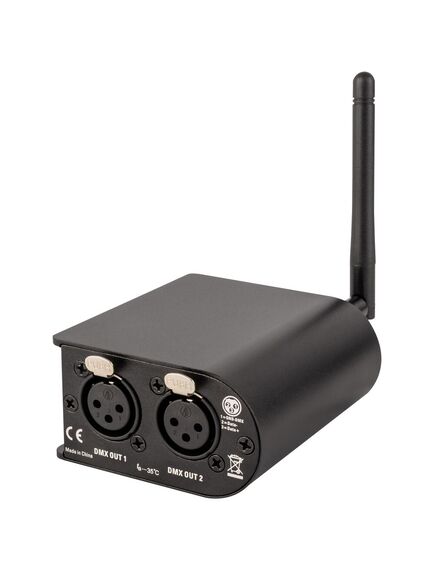

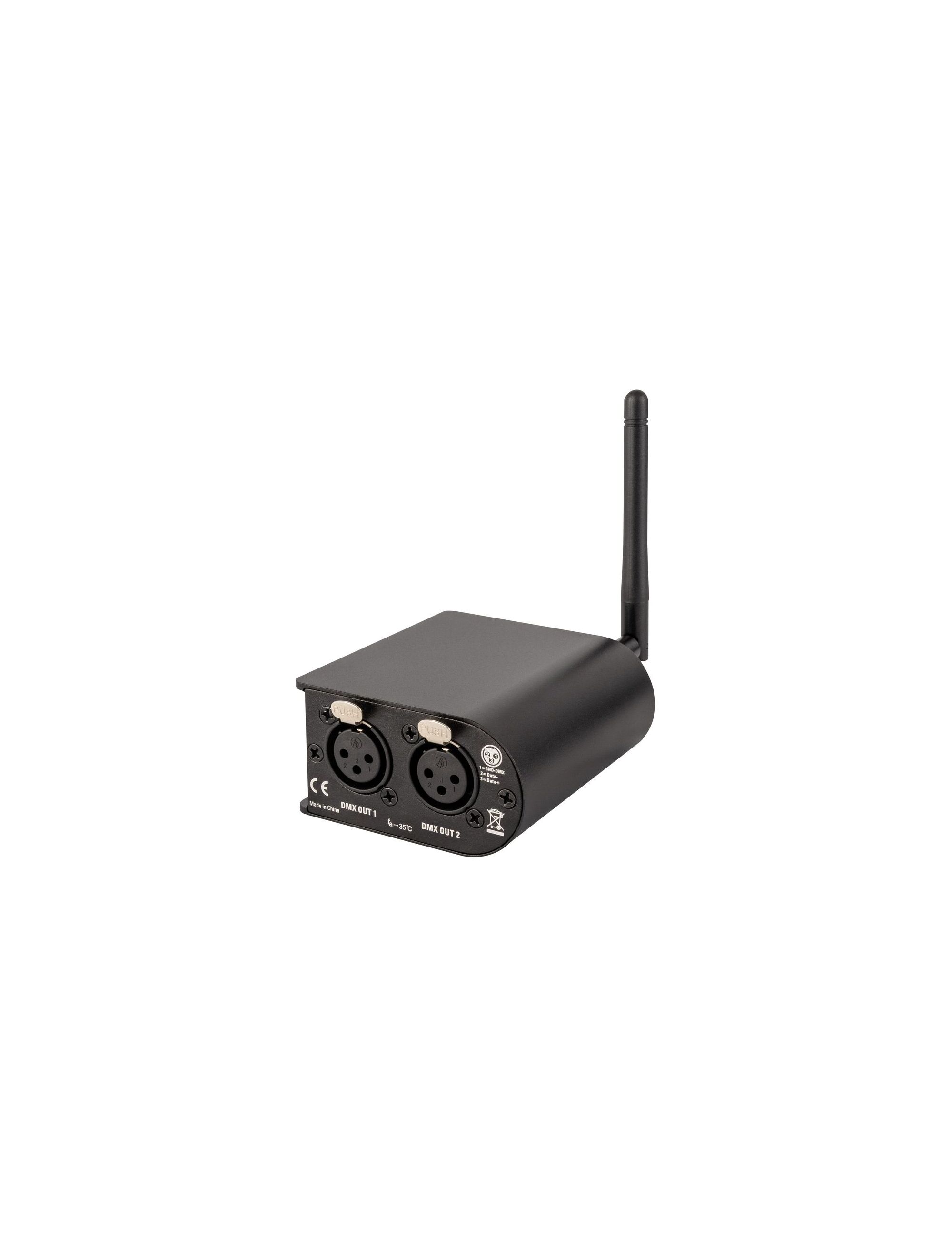

DMX Connector Out
XLR 3P
Data Connector In
USB A
Mechanical Specifications
Length (mm)
84 mm (3.307″)
Width (mm)
75 mm (2.953″)
Height (mm)
40 mm (1.575″)
Weight
0.19 kg (0.419 lb)
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black
Product Properties
LED Indicators
DMX Green Signal, Power
Thermal Specifications
Maximum Ambient Temperature
40 °C (104 °F)
