512 channel DMX console
10.1" touchscreen with Fixture View and Quick Colour Picker
Multicolour indicator LEDs and 4 encoder wheels with 1.3" display
Complete built-in effects engine for easy control
Second (touch)screen possibility

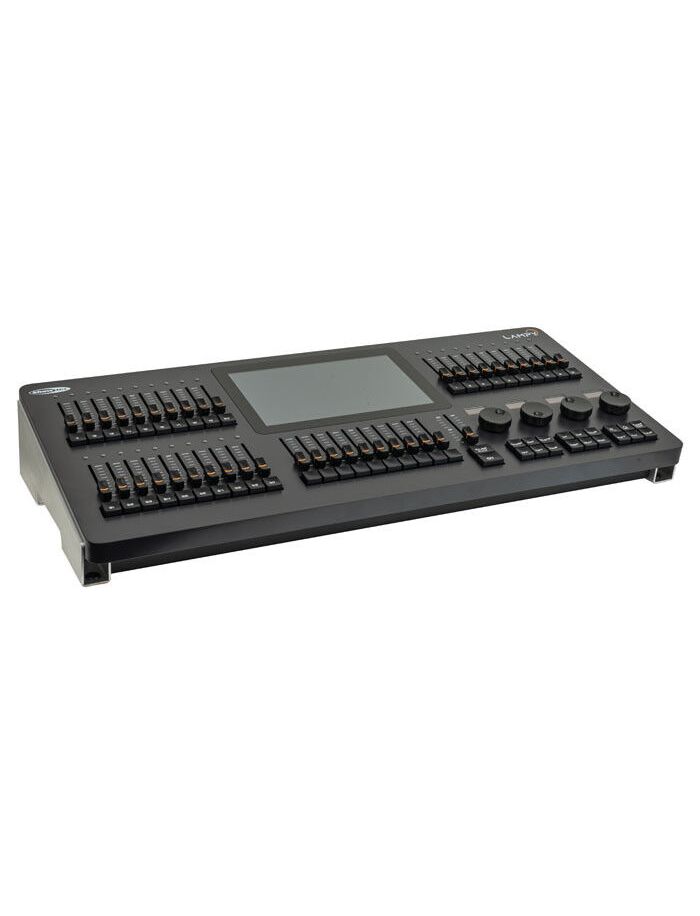

The Showtec Lampy 40 1U is a fully featured 512 channel DMX console with state-of-the-art look and feel, suitable for various venues. Its industrial, floating design with 10.1” touchscreen and multicolour indicator LEDs enable a quick and clear workflow in an utmost intuitive manner. Arranging existing elements is now easier than ever before with customizable workspaces and Fixture View for a clear virtual stage layout with easy pick, drag and drop control. You can also easily pick any colour you’d like and control every moving light precisely to your desired outcome in no time.

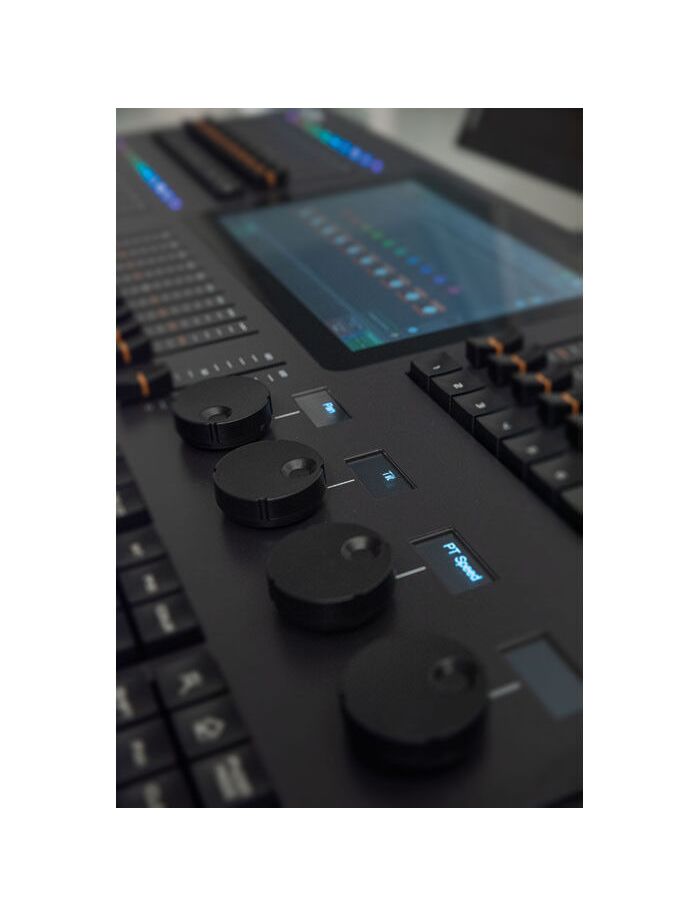

The Lampy 40 1U enables you to add an external screen and also to take full mobile control over your fixtures via an iPad or tablet since it is OSC compatible. You can easily create any complicated and stunning show effect with its complete built-in effect engine. Unlike most comparable DMX consoles, the Lampy 40 1U has no less than four encoder wheels with 1.3" OLED display for visual function information.
LAMPY consoles utilise the Atlabase library which offers more than 21,000 fixture files to choose from.
You can extend its software capabilities to two universes by adding an optional Showtec Lampy Dongle. It doubles its DMX channels up to 1024, enables Art-Net, sACN and provide access to all external monitor features.
If 10 multifunction faders and 10 playback faders with cue buttons are sufficient for your practice, we recommend to check out our Lampy 20 with 10 instead of 30 multifunction faders while using the same 9 memory pages for sufficient storage space.
Control and Programming
Control Mode DMX, MIDI
DMX Channels 512
Patch mode Yes
Display LCD, Touch
Display Size 10.1 "
Display External Yes
Display External Resolution Width 1920
Display External Resolution Height 1080
Fixtures 512
Buttons 60
Cue Lists 90
Display Encoders 4
Display Encoders Type OLED
Encoder Wheels 4
Faders 41
OSC (Open Sound Control) Yes
Playback Buttons 40
Playback Faders 40
Playback Pages 9
sACN Optional
Art-Net Optional
SMPTE Timecode No
Effects Engine Yes
Universes 1
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Power Consumption 60 W
Power Connector in Power Pro Blue
DMX Connector out XLR 3P, XLR 5P
Data Connector in RJ45, USB
Data Connector out RJ45, USB
Midi Connector Yes
Ethernet Ports 1
Audio Triggers 3
Mechanical Specifications
Length (mm) 721 mm
Width (mm) 345 mm
Height (mm) 128 mm
Weight 11.8 kg
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties
Cooling Convection
LED Indicators Operation mode, Output level, Output Level Mimic
Desklight Built-in Worklight
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables Pro Power Cable
