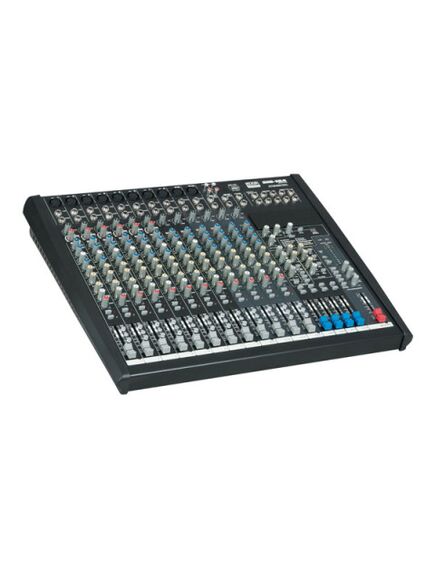

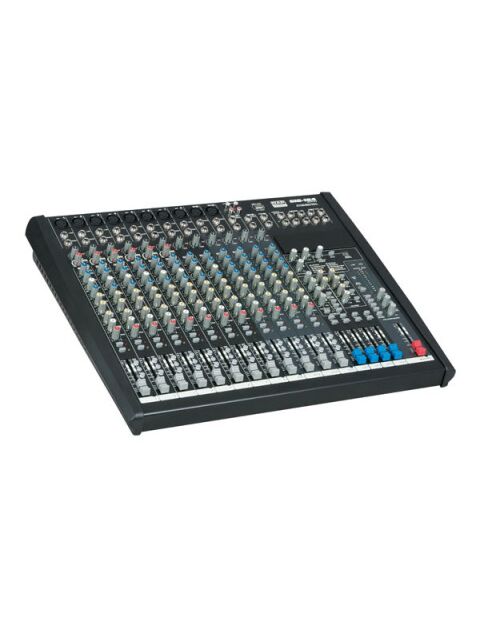

GIG-164CFX 16 Channel Mixer with dynamics and DSP

D2287
73780
Σε Απόθεμα εντός 10 ημερών
Παράδοση
Πληρωμή
Γιατί Audiostore
  • — Εγγύηση Κατασκευαστή
  • — Επιστροφή εντός 14 ημερών
  • — Μεγάλη Ποικιλία
  • — Εμπειρία 30 ετων
  • — Καλύτερες Τιμές
The GIG-164 CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 10 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3 band equalizer for HI, MID SWEEP and LOW controls, as well as 3 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.

Specifications

Mono Channels
Mic Input: XLR balanced
Line input: 1/4– TRS balanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -35dBu ~ +15dBu
LOW Cut: 75Hz
SNR <-114dBr
Phantom Power: +48V switchable

Stereo Channels
Mic Input: XLR balanced
Line input: 1/4– TRS/RCA unbalanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -20dBu ~ +20dBu
LOW Cut: 100Hz
SNR <-100dBr
Phantom Power: +48V switchable

Channels EQ mono
High: +/- 15dB @ 12kHz, Shelving
Mid: +/- 15dB @ 100-8kHz, Sweepable
Low: +/- 15dB @ 80Hz, Shelving
Channels EQ stereo
High: +/- 15dB @ 12kHz, Shelving
Mid: +/- 15dB @ 3kHz
Mid: +/- 15dB @ 500Hz
Low: +/- 15dB @ 80Hz, Shelving

Impedances
Microphone input: 1,8K Ohm
Other inputs: >10K Ohm
Tape output: 1K Ohm
All other outputs: 120 Ohm

USB
Record: 1 stereo pair (switchable between GRP 1-2 and MAIN MIX)
Playback: 1 stereo pair (switchable between Ch 15-16 and MAIN MIX)

Power supply: AC 100- 240V 50Hz/60Hz
Power consumption: 50 Watt
Measurements: 535 x 435 x 85mm
Weight: 6,75 Kg
Manufacturer
Dap Audio
