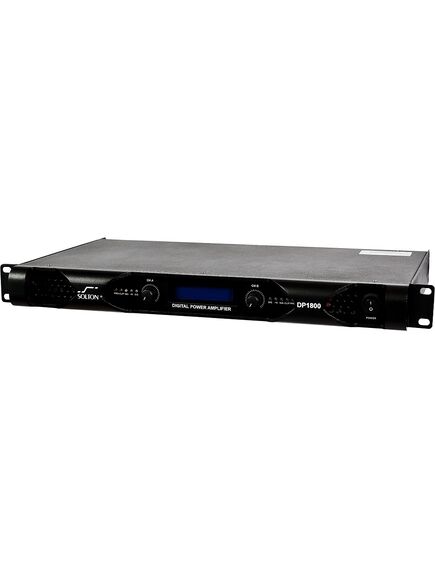

The DP 1800 has been designed as a powerful two channel power amplifier featuring light weight, compact, high power output and high efficiency. The DP 1800 adopt high-performance digital power management technology and advanced vector switch mode power supply with optimum flexibility and maximum control and security which is ideal for clubs, multi-purpose hall, high fidelity audio-visual venues, small/medium scale of indoor/outdoor shows.
Built in 2.5"LCD Display in front. Showing informations Mode, Real Time internal Temperature, Input Power and Power consumption.
Specifications
Type 2 Channel Amplifier
Output Power 8 ohms per channel (watt) 600 W
Output Power 4 ohms per channel (watt) 900 W
THD < 0.05%
Frequency Response 20 Hz ~ 20 kHz (±0.5dB)
Damping Factor > 650
S/N Ratio > 103dB
Input Impedance balanced > 20K/ > 10K
Input Connectors 2x Neutrik XLR3
Output Connectors 2x Speakon NL4MP
Protection Circuit DC short circuit, overheat protection, Intuitive power and protection instructions
Controls Front 2.5"LCD, main switch, volume control (2 channels)
Controls Rear parallel / stereo
Cooling 3-fans, front-to-rear airflow, temperature controlled speed
Class D
Power Supply 220V AC 50Hz ± 10%
Dimensions mm (WxHxD) 330 x 44 x 483
Weight 3.7 Kg
