The DCP-26 MKII is a very complete 2 in- 6 output digital speaker manager. Even if you are not an audio engineer you can easily setup this unit with the included software that works by the USB interface. It has 5 PEQ's at the in- and outputs and various types of filters to manage any kind of speaker or speaker system. Furthermore it has all features you need like phase reverse, limiters and delays. Clear in and output meters in combination with the LCD display gives you all the necessary information in one overview. The DCP-26 MKII is suitable for PA, line arrays and audio installations, as well as sound distribution networks.

Specifications

DSP:
Sample rate: 48 kHz, 64 bits NXP (Philips) DSP

5-Bands Input EQ:
EQ Selections: Allpass, Bell, High Shelf,
Low Shelf, Notch
EQ Frequency Selection: 20 to 20,000 Hz in
1 Hz steps on all EQ's

Delay:
Output delay: Channel independent from 0 to 8 mS

5-Bands Output EQ:
EQ Selections: same as input
Type: Low Shelf 6, Low Shelf 12,
High Shelf 6 and High Shelf 12

Crossovers:
Types: Linkwitz Riley, Bessel and
Butterworth
Slopes: 6, 12, 18, 24 dB/octave
Crossover frequencies: 20 to 20,000 in 1 Hz
octave steps

Limiter:
Threshold points: -20 to +20 dBu in 0.5 dB steps
Attack time: Zero Attack Time Limiter
Release times: 1 = shortest, 100 = endless long,
in steps of 1.

Miscellaneous:
Memory Storage: 50 User presets
Mute: All Output channels can be
individually muted
Display: 2 x 16 dot matrix characters
Latency: 1.27 mS
USB Interface: Back
Power Supply: 6V DC
Power Consumption: 4 Watt
Power Switch: Back
Measurements: 483 x 155 x 44 mm

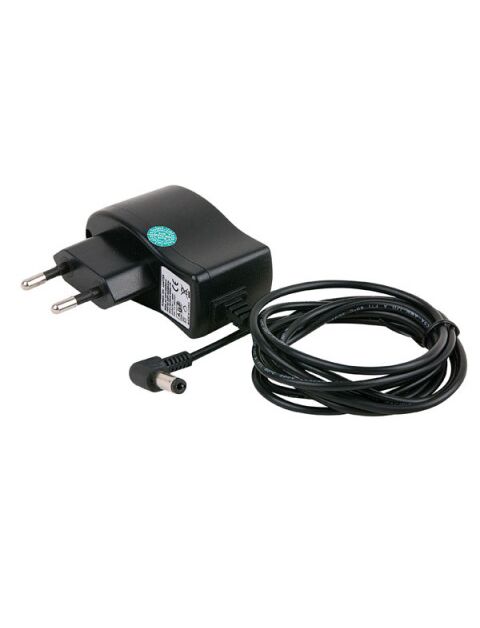

Accessories: Power adapter, USB cable, DSP software
Manufacturer
Dap Audio
