Compact (1U) and lightweight Class D touring amplifier
Lo-Z (2, 4, 8 ohms), Hi-Z (70/100 V), stereo and bridge modes
DSP with 512 FIR filter taps and 8-band parametric EQ
Full control via UDP and Windows 10/11 software
Universal SMPS (100 - 250 V AC) with PFC

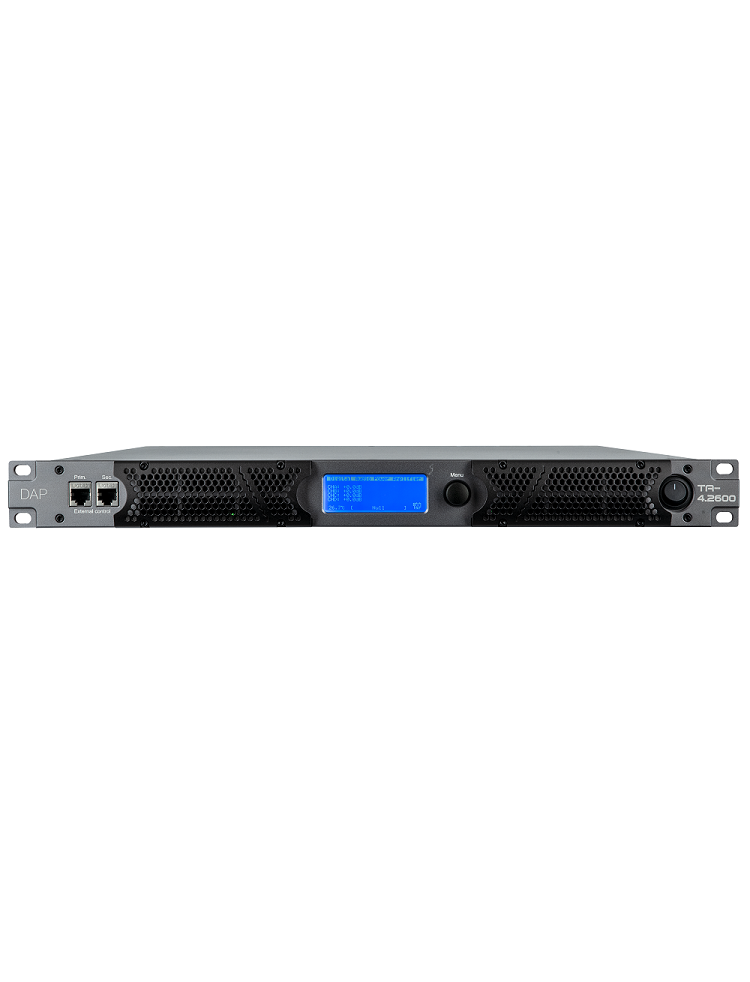

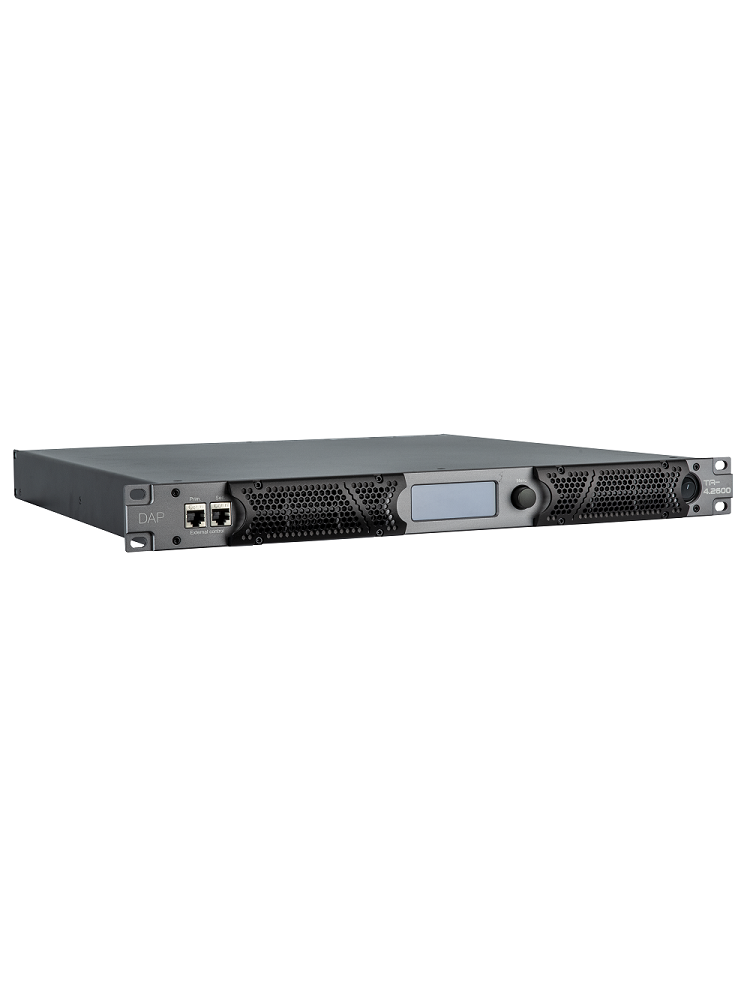

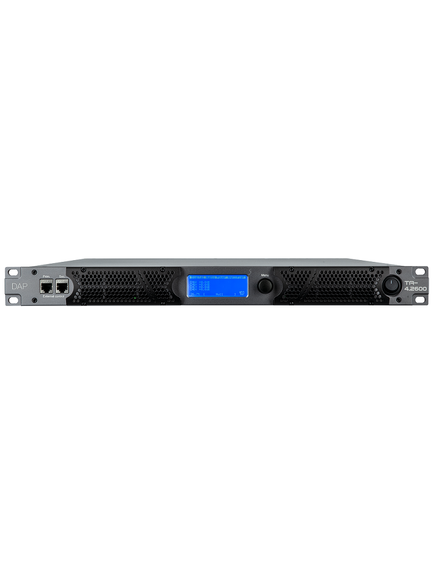

The DAP TA-4.2600 is a compact and lightweight 4-channel DSP power amplifier for touring applications. In a 1U rack space it delivers 4x 2600 W into 4 ohms, is capable of driving 2-ohm loads and can be used for 70/100 V systems and bridged for even more power. Designed for low impedance and high current, it achieves over 90% efficiency with excellent stability.
The DSP can be controlled via a network connection and free PC software (Windows 10/11) and offers input delays of up to 100 ms, output delays of up to 20 ms, +/- 18 dB level matching, 4x4 audio route mixing, 8-band parametric input equalisers, 8-band parametric output equalisers, high and low pass filters, FIR filters with up to 512 taps, peak and RMS limiters, phase control and more. The amplifier supports UDP and output voltage/current, temperature and protection can be monitored over the network. It also has a built-in switch that allows the network to be daisy-chained to multiple amplifiers. The LCD screen shows status and settings, which can be adjusted using the rotary knob next to it.
The universal switching power supply uses active PFC and soft-switching technology, accepts input voltages from 100 - 250 V AC and is optimised for the audio power amplifier.
Outputs
2 ohms Stable Yes
Output per Channel into 8 ohms at 1 kHz 1500 W
Output per Channel into 4 ohms at 1 kHz 2600 W
Output per Channel into 2 ohms at 1 kHz 4350 W
Bridge Output into 8 ohms at 1 kHz 5000 W
Bridge Output into 4 ohms at 1 kHz 8600 W
Output per Channel at 70/100 V at 1 kHz 2500 W
Output Channels 4
Output Mode 4-channel, Bridge, Mono, Parallel, Stereo
Output Connector Speaker Connector 4 pole
Inputs
Mono Inputs 4
Transformer 70+100 V
Mono Input Connector 3-pin XLR
Mono Input Gain Range 21 dB
Mono Input Impedance 2000 Ω
Audio Specifications
THD Level < 0.05 %
Signal-to-noise Ratio > 105 dB
Slew Rate 50 V/μs
Amp Technology Class D
Damping Factor 1000 :1
Crosstalk 90 dBu
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Sound Editing
Parametric Input Equalizer 8 Bands
Parametric Output Equalizer 8 Bands
Input Equalizer Types High Shelf, Low Shelf
Crossover Filter Types Bessel, Butterworth, Linkwitz Riley
Crossover Slopes 6, 12, 24, 48 dB
Dynamics Processing Limiter
Phase Reverse Yes
Limiter Attack Time Minimum 1 ms
Limiter Attack Time Maximum 2000 ms
Limiter Release Time Minimum 20 ms
Limiter Release Time Maximum 1000 ms
Output Delay (Max.) 30 ms
Input Delay (Max.) 100 ms
Internal Storage
User Presets Yes
User Presets Capacity 40
Control and Programming
Control Mode PC Software
Display LCD
Display Size 3 "
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
SMPS Yes
Power Consumption 2470 W
Power Connector In Schuko Plug
Data Connector In RJ45
Mechanical Specifications
Amplifier Airflow Front to back
Amplifier Cooling Axial fan
Height (mm) 45 mm
Width (mm) 483 mm
Length (mm) 455 mm
Installation Depth (Excl. Connector) 455 mm
Flightcase Size 19"
Rack Units 1 U
Housing Steel
Colour Black
Finish Powder Coating
Weight 13.2 kg
IP Rating IP20 (indoor use only)
Product Properties
Electronic Protection Clip limiter, DC voltage, Overheat, Overload, Under voltage
Thermal Specifications
Μaximum Ambient Temperature 40 °C
Minimum Ambient Temperature -15 °C
Maximum Surface Temperature 70 °C
Included Items
Included Cables Fixed Cable
