Compact & Powerful
24-bit DSP Processor with LCD-display
Natural sound quality
Fully customizable EQ

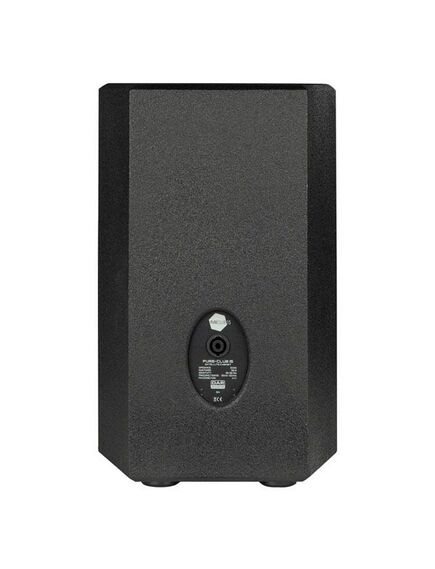

The bigger brother of the Pure Club 12 with a 15“ subwoofer and two 8"/1“ satellites. The satellites are equipped with neodymium high drivers and a special wave guide for frequencies up to 20 Khz. Due to the 8” mid speakers this set has a more detaiLED natural sound quality. The built-in DSP processor will protect the system and speaker drivers against overload and will give an excellent frequency response at any sound pressure level. The set is finished with scratch resistant paint and stylish metal grills. Stands and soft cases are sold separately.
Outputs
RMS Output Power Amplifier 700 W
Peak Output Power Amplifier 1400 W
Top Cabinet High Driver Power 150 W
Top Cabinet Low Driver Power 150 W
Subwoofer Power 400 W
Passive High Output Connector Speaker Connector 4 pole
Main Outputs 2
Main Output Connector 3-pin XLR
Main Output Maximum Level 10 dBu
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, RCA, TRS balanced 6.3 mm
Mono Input Impedance 20 Ω
Audio Specifications
THD Level < 0.5 %
Signal-to-noise Ratio > 103 dB
AD/DA Convertor Sample Rate 96 kHz
SLEW Rate 20 V/μs
Amp Technology Class D /Class H
Damping Factor 400 :1
Top Cabinet Impedance 8 Ω
Subwoofer Impedance 8 Ω
Speaker System Active Sub-Top Set
Speaker Sensitivity (1 W/1 m) 102 dB
Subwoofer Sensitivity (1 W/1 m) 95 dB
Max. SPL subwoofer at 1 m 128 dB
Max. SPL top cabinet at 1 m 116.8 dB
DSP Processor Bitrate 48-bit
Frequency Response Minimum 40 Hz
Frequency Response Maximum 20 Hz
Crossover Frequency Mid 125 Hz
Crossover Frequency High 2 Hz
Woofer Diameter 15 "
Woofer Voice Coil 3 "
Woofer Magnet Type Ferrite
Satellite Woofer 8
Satellite Woofer Voice Coil 2
Satellite Woofer Magnet Type Ferrite
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1 "
Compression Driver Magnet Type Neodymium
Dispersion Angle Horizontal 90°
Dispersion Angle Vertical 60°
Subwoofer Dispersion Angle Horizontal 360°
Subwoofer Dispersion Angle Vertical 180°
Satellite Dispersion Angle Horizontal 90°
Satellite Dispersion Angle Vertical 60°
Sound Editing
Equalizer Range 12 dB
Parametric Input Equalizer 3 Bands
Equalizer Types Input Bell, High Shelf, Low Shelf, Notch
Crossover Filter Types Butterworth
Crossover Slopes 24 dB
Limiter Treshold Minimum -20 dB
Phase Reverse Yes
Internal Storage
User Presets Yes
User Presets Capacity 6
Control and Programming
Display LCD
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Power Consumption 1200 W
Fuse 8 A
Power Connector in Power Pro Blue
Power Connector out Power Pro Grey
Mechanical Specifications
Amplifier Cooling Convection
Height Top Cabinet 420 mm
Width Top Cabinet 250 mm
Length Top Cabinet 265 mm
Height Subwoofer 570 mm
Width Subwoofer 454 mm
Length Subwoofer 625 mm
Material Wood
Material Thickness 12 mm
Weight Top Cabinet 7.9 kg
Weight Subwoofer 32.5 kg
IP Rating IP20 (indoor use only)
Colour Black
Finish Painted
Product Properties
Pole Mount 35 mm
Electronic Protection Clip limiter, DC voltage, Digital limiter, High frequency, Overheat, RF, Short circuit, Softstart
LED Indicators Power
Rotatable Horn No
Useable as Monitor/Wedge No
Speaker Grill Material Steel
Speaker Handles Positions Left side, Right side, Top
Castors None
Included Items
Included Cables powerCON cable
Included Accessories User Manual
