1000 W RMS, 2000 W peak, max SPL of 127 dB at 1 m
48 - 20,000 Hz frequency range
BT 5.3 with True Wireless Stereo (TWS)
Dedicated mic and line + Hi-Z inputs
Internal DSP with 4 modes, adjustable crossover, EQ, and limiting

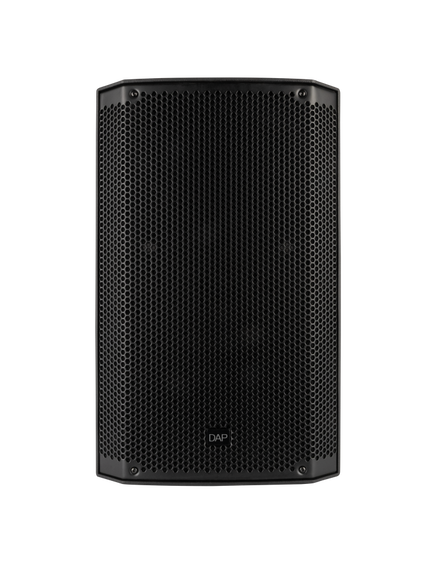

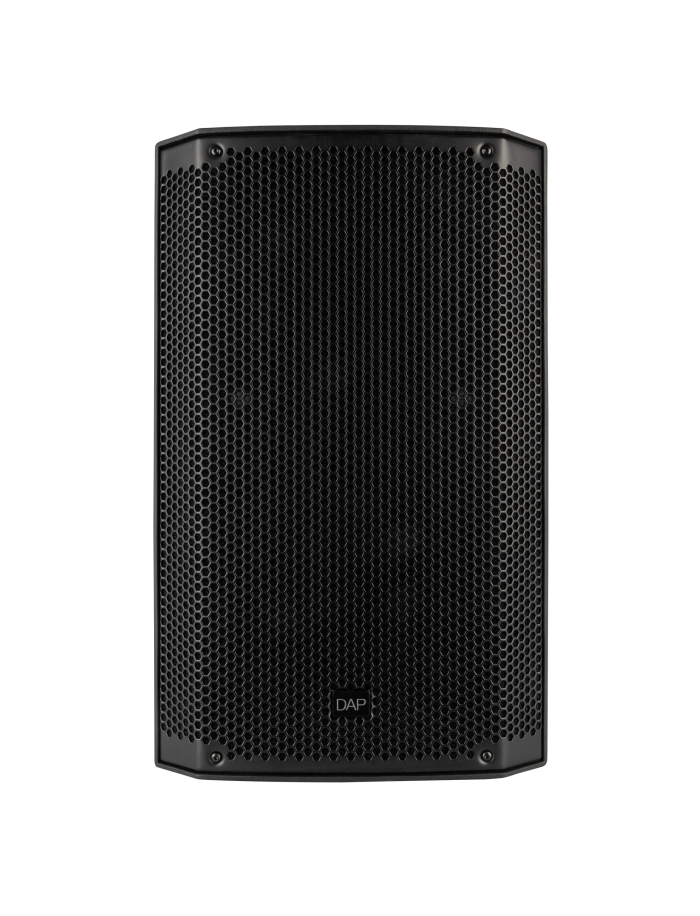

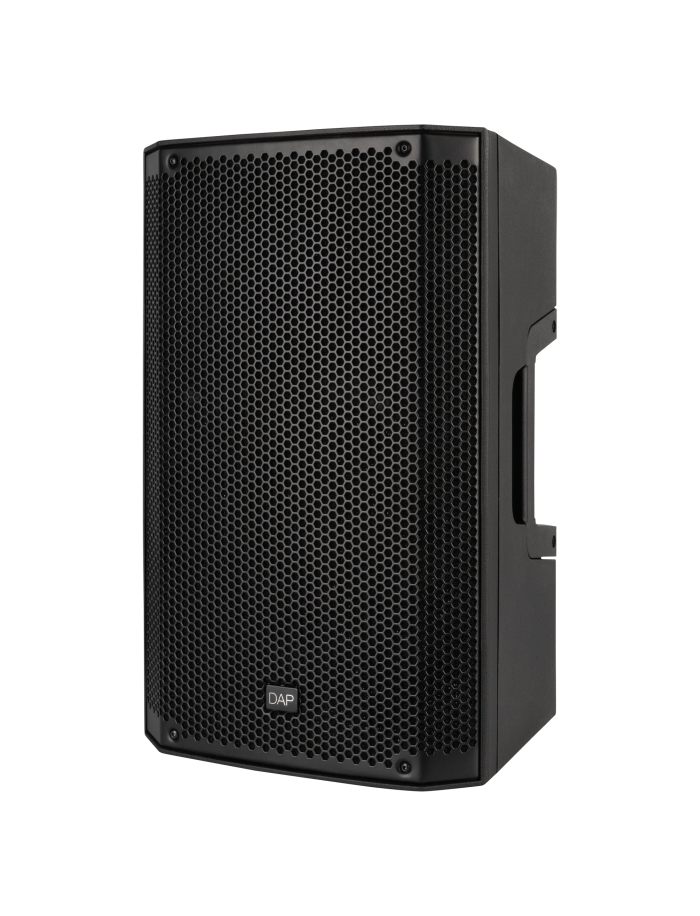

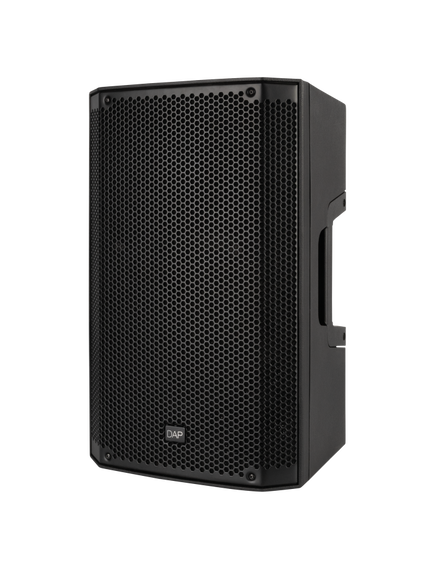

The NGA-10A is a compact active loudspeaker designed for versatile audio applications. It features a 10" woofer paired with a 1.4" compression driver, delivering a frequency response of 48 - 20,000 Hz (-10 dB). The system is powered by a 1000W RMS Class-D amplifier and includes a built-in DSP engine with four selectable user modes.

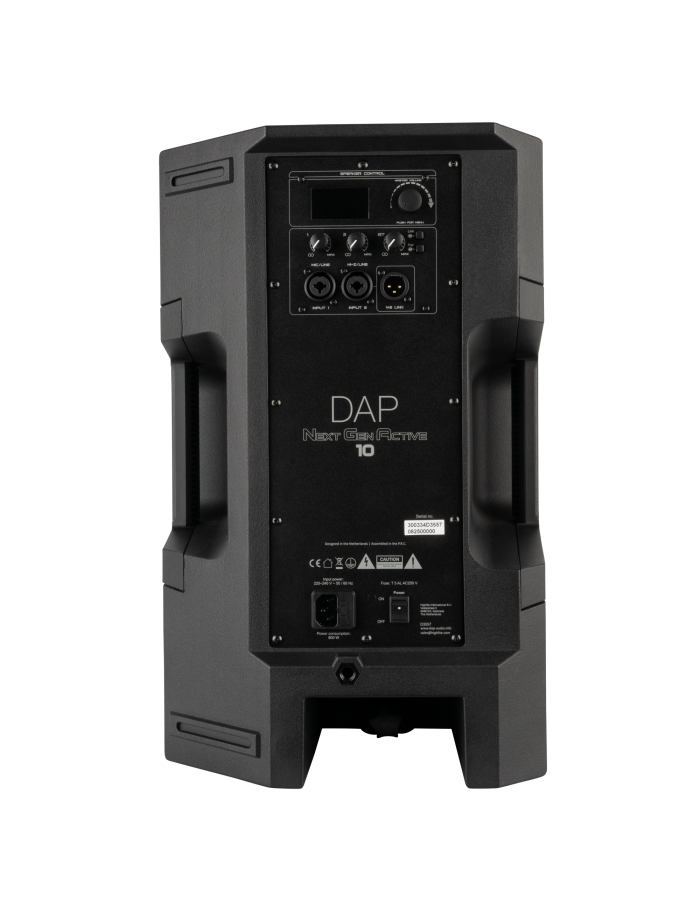

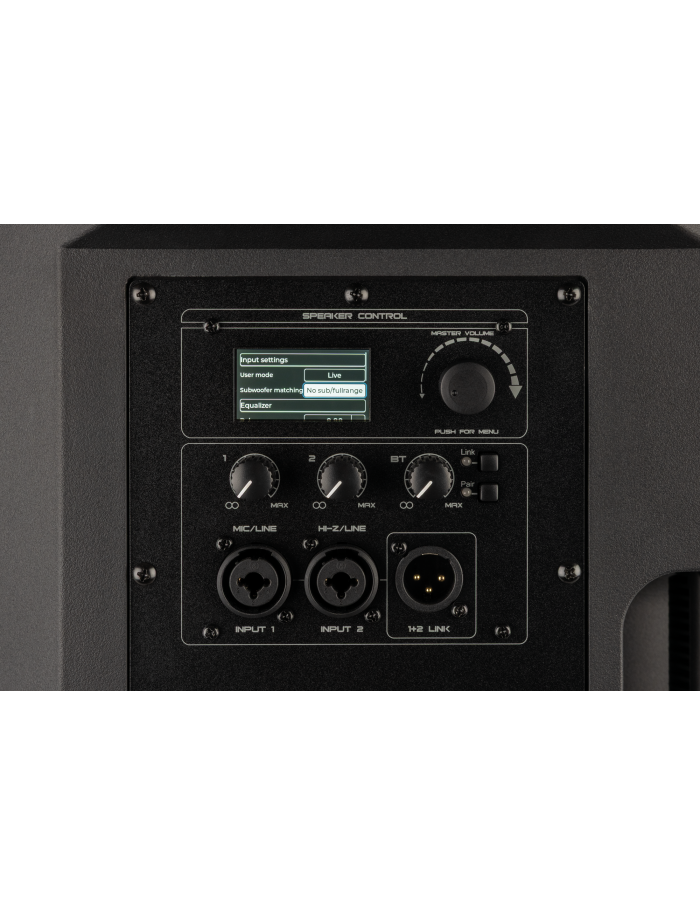

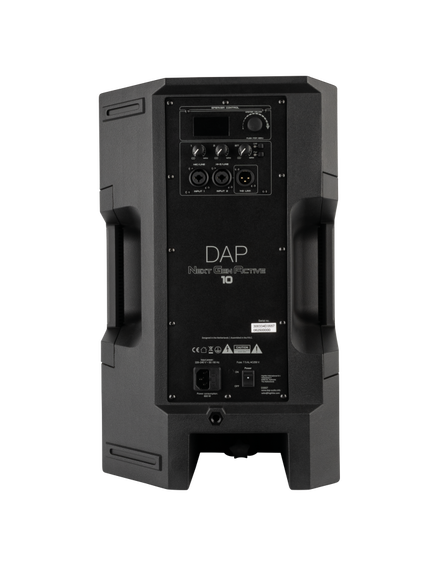

The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output sums both analogue inputs but excludes the Bluetooth signal.
Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.
BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-10A can be remotely controlled via a dedicated app, allowing access to output gain, 3-band EQ, speaker name, speaker positioning (wall, free-standing), crossover frequency, user modes and stored presets.
Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.
Outputs
Low Driver Power 650 W
High Driver Power 350 W
Power Amplifier RMS Output 1000 W
Power Amplifier Peak Output 2000 W
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TS unbalanced 6.3 mm
Audio Specifications
THD Level % < 0.15 %
Signal-to-noise Ratio > 85 dB
Amp Technology Class D
Speaker System 2-way
Speaker Sensitivity (1 W/1 m) 95 dB
Maximum SPL at 1 m 126 dB
Frequency Response (-3 dB) Minimum 54 Hz
Frequency Response (-3 dB) Maximum 20000 Hz
Frequency Response (-10 dB) Minimum 48 Hz
Frequency Response (-10 dB) Maximum 20000 Hz
Crossover Frequency (High) 3000 Hz
Woofer Diameter 10 "
Woofer Voice Coil Diameter 2.5 "
Woofer Magnet Type Ferrite
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1.4 "
Compression Driver Magnet Type Ferrite
Dispersion Angle (Horizontal) 90 °
Dispersion Angle (Vertical) 60 °
Control and Programming
Control Mode Bluetooth
Display TFT
Display Size 1.9 "

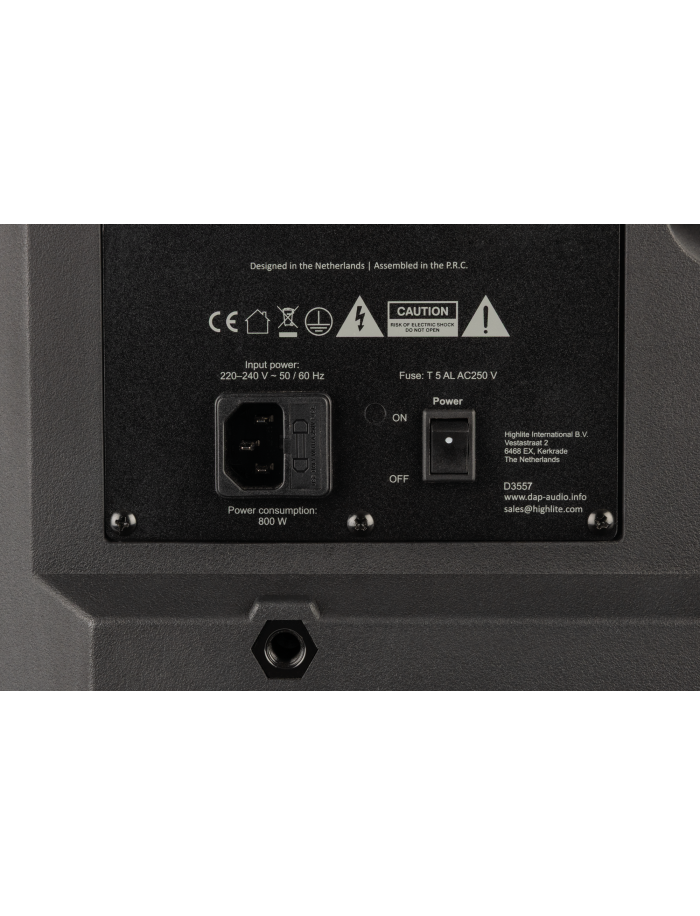

Electrical Specifications and Connections
Power Supply 220-240 V AC 50/60 Hz
Power Consumption 800 W
Fuse 5 A
Power Connector In IEC
Mechanical Specifications
Height (mm) 528 mm (20.787″)
Width (mm) 334 mm (13.15″)
Depth (mm) 313 mm (12.323″)
Material Polypropeen
Colour Black
Weight 12.52 kg (27.602 lb)
IP Rating IP20 (indoor use only)
Product Properties

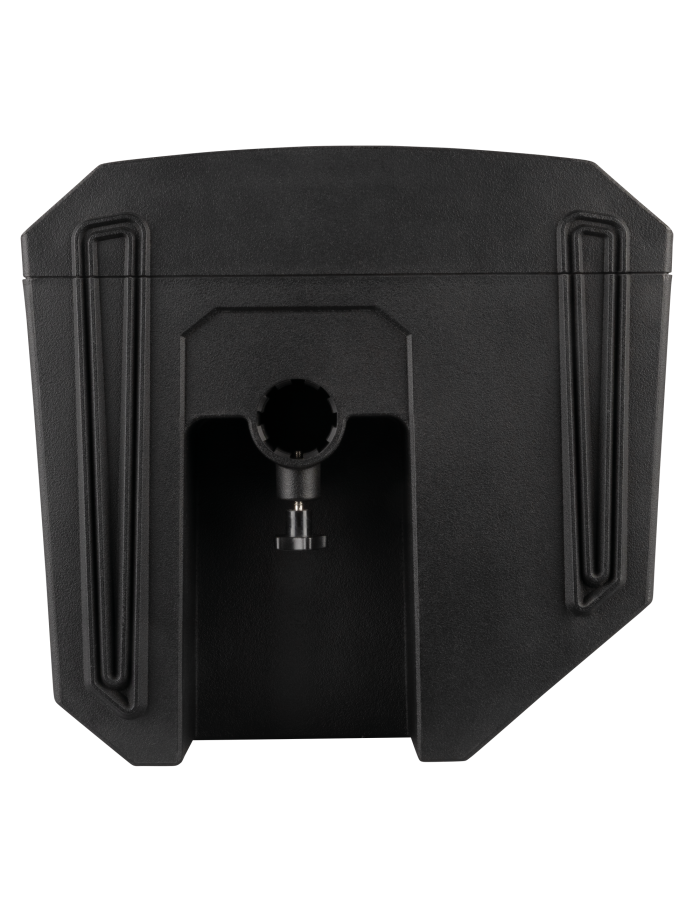

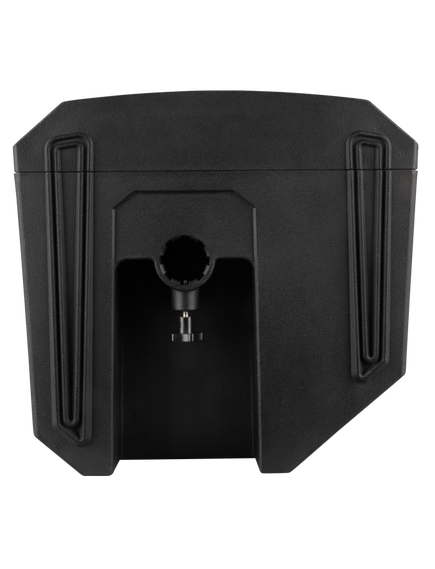

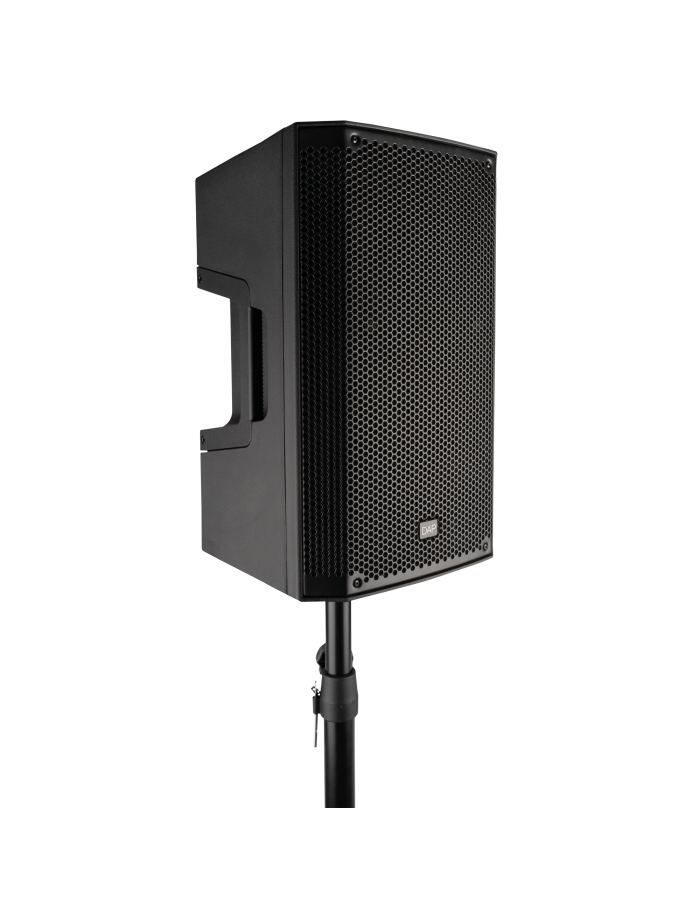

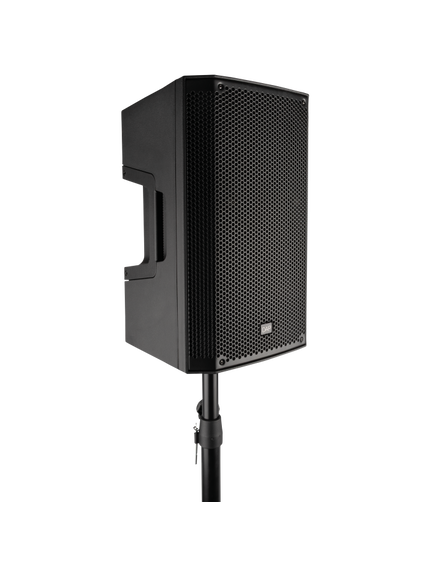

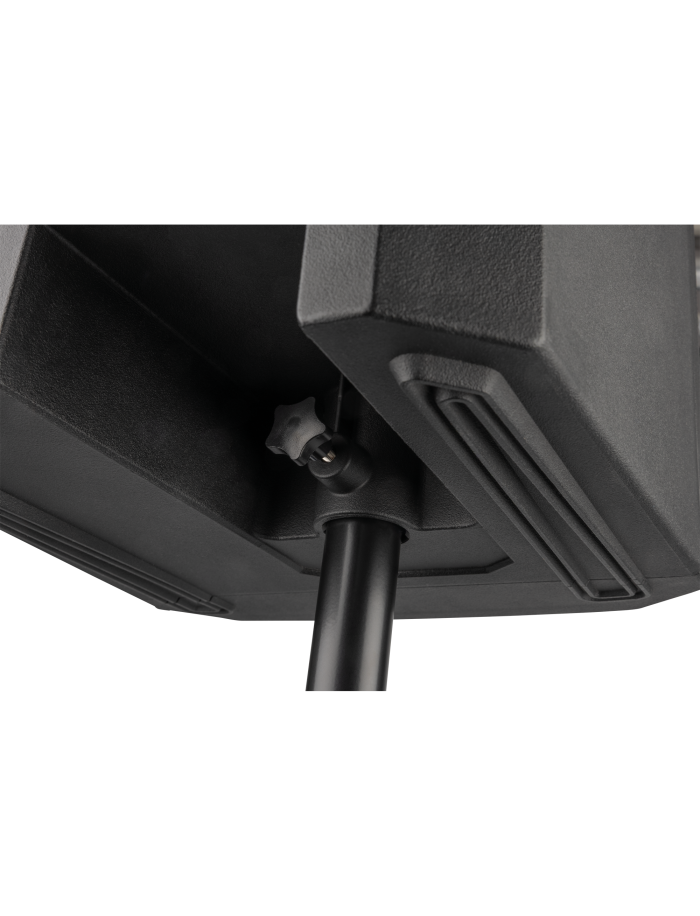

Pole Mount 35 mm
Electronic Protection Clip limiter, Overload, Thermal
LED Indicators BT Pairing
Rotatable Horn No

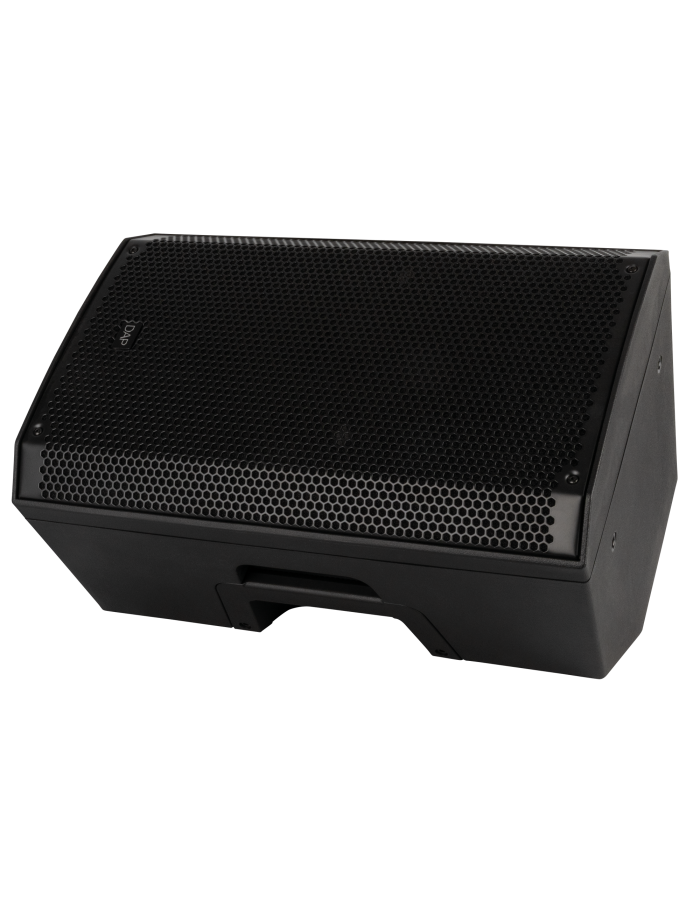

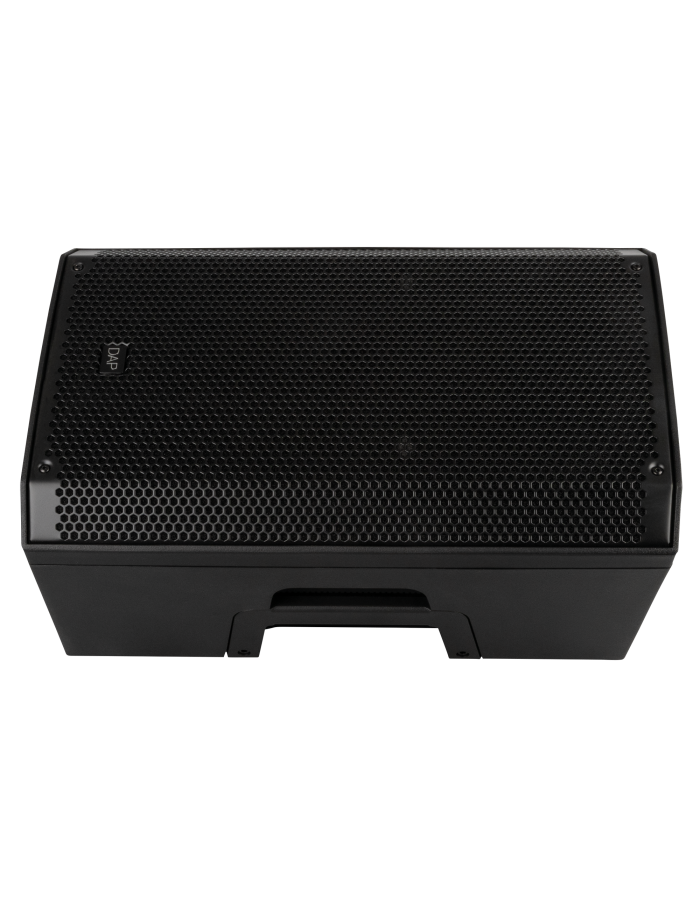

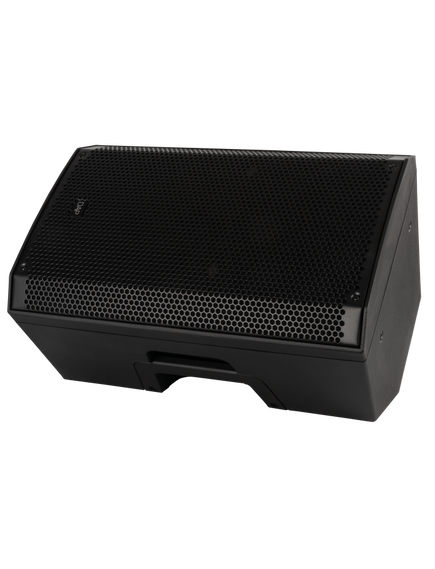

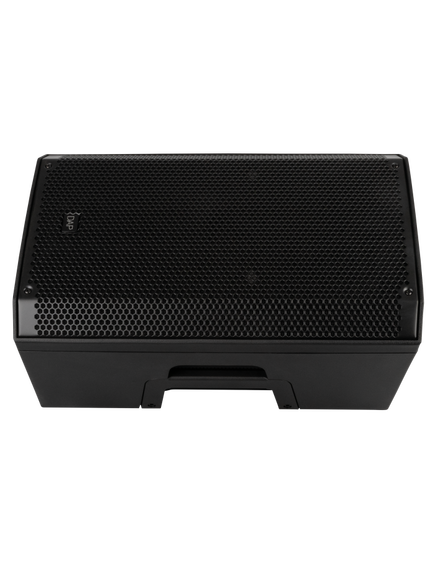

Useable as Monitor/Wedge Yes

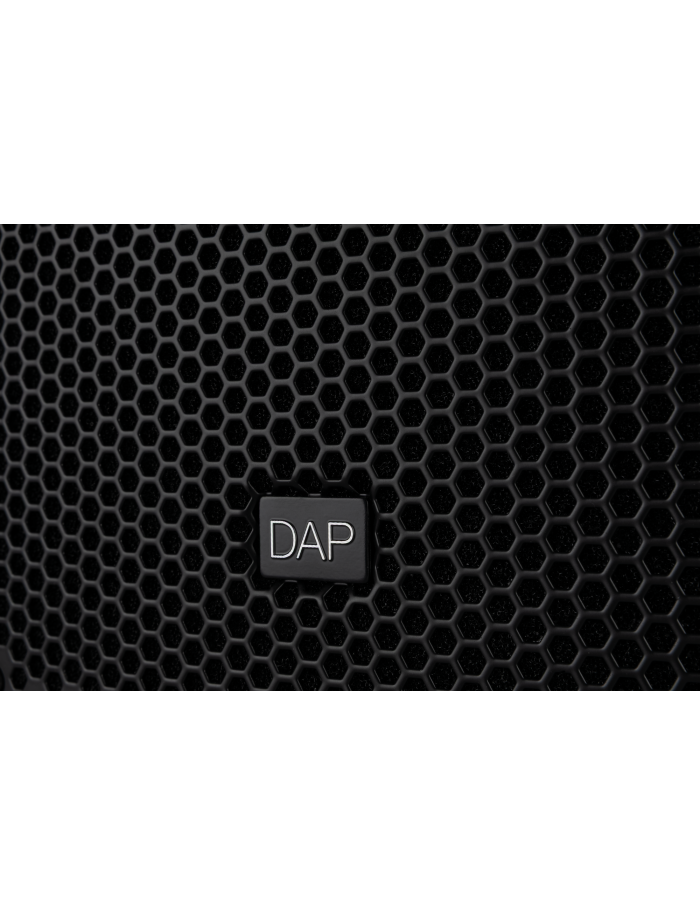

Speaker Grille Material Steel

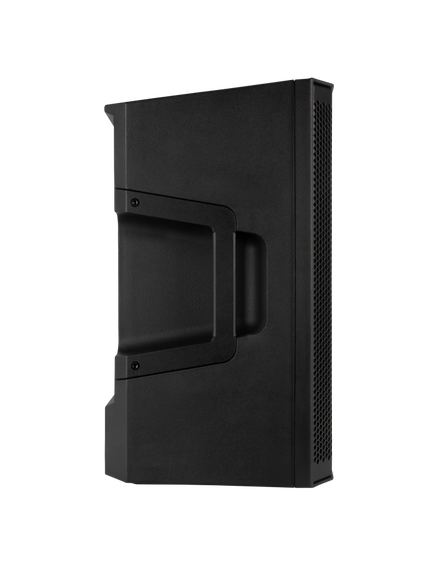

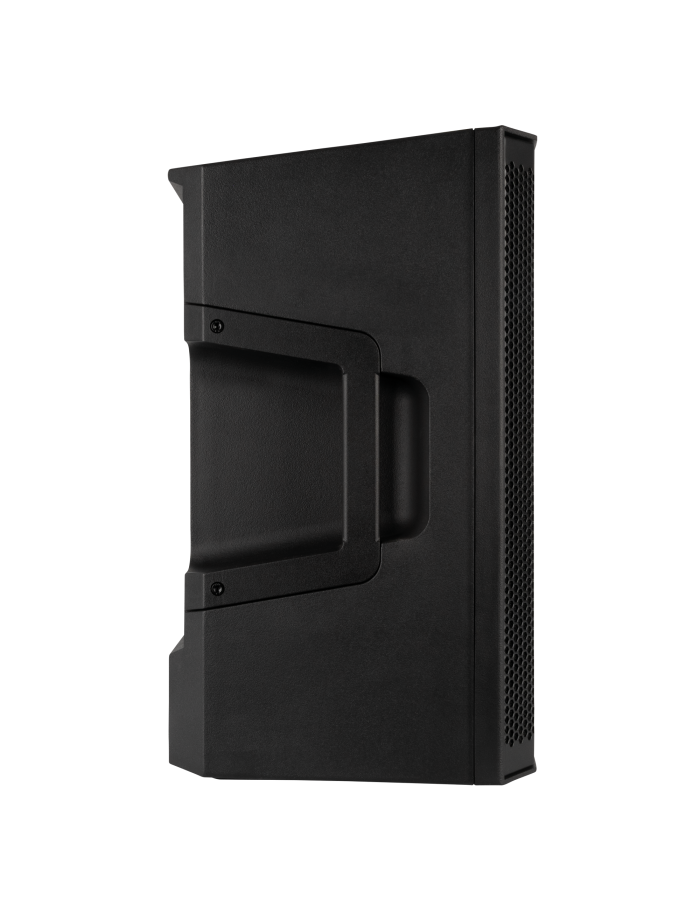

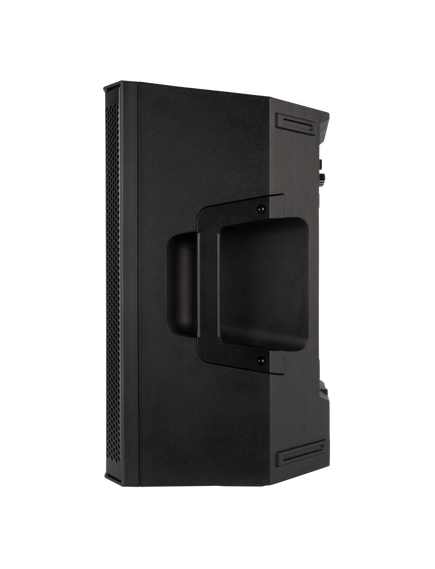

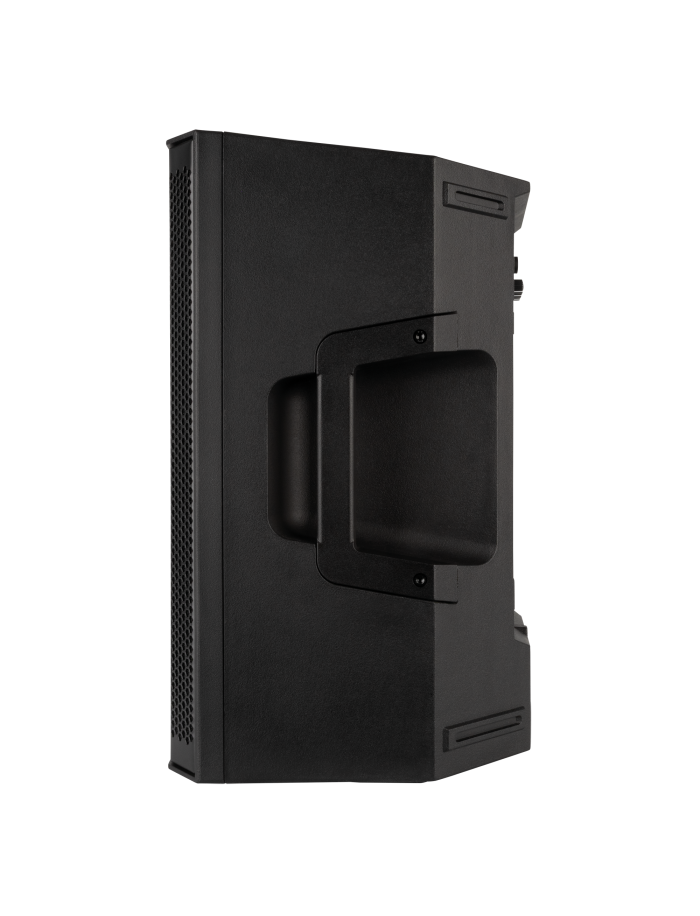

Speaker Handle Positions Left side, Right side, Top

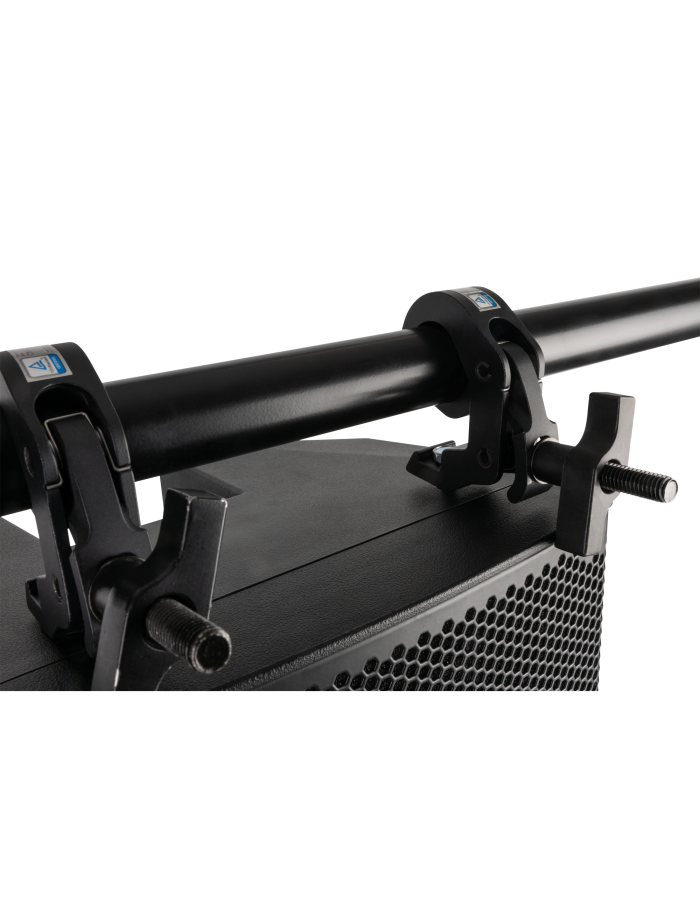

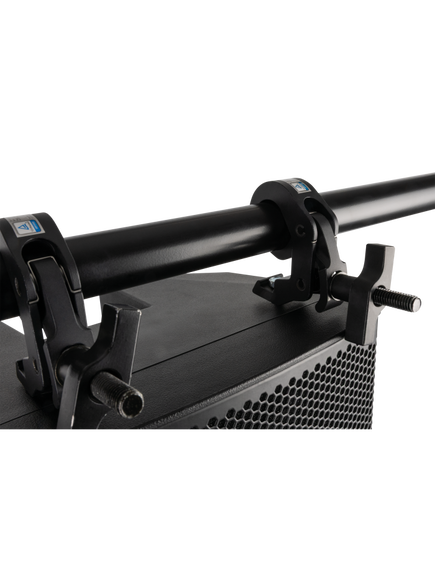

Rigging

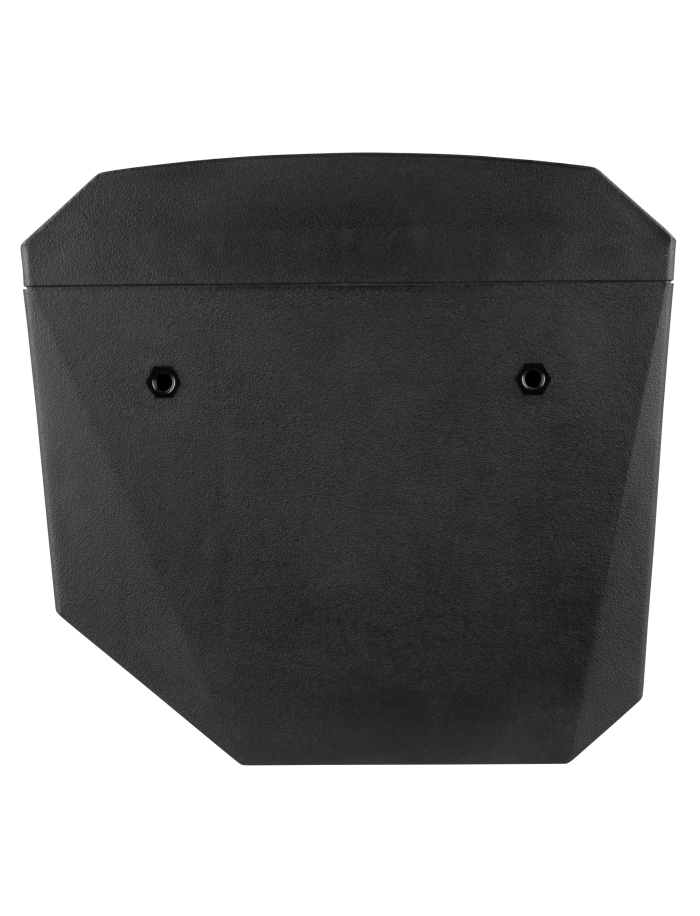

Rigging Options Flying

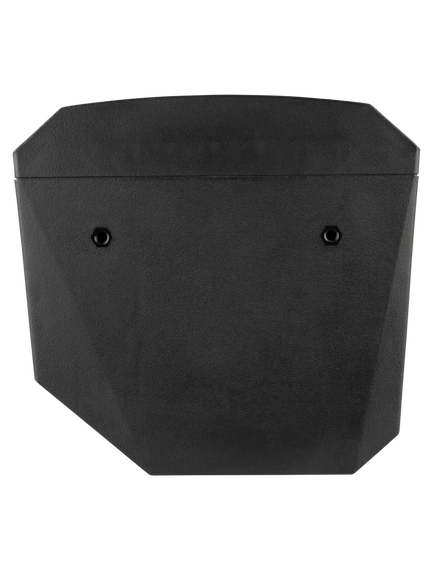

Rigging Eye Thread M10
Included Items
Included Cables IEC cable
