1000 W RMS, max SPL of 134 dB at 1m (column)
40 - 20,000 Hz frequency range
Tri-amp
Microphone, line and Bluetooth 5.0 inputs with TWS
Cables, mounting poles and spacers included

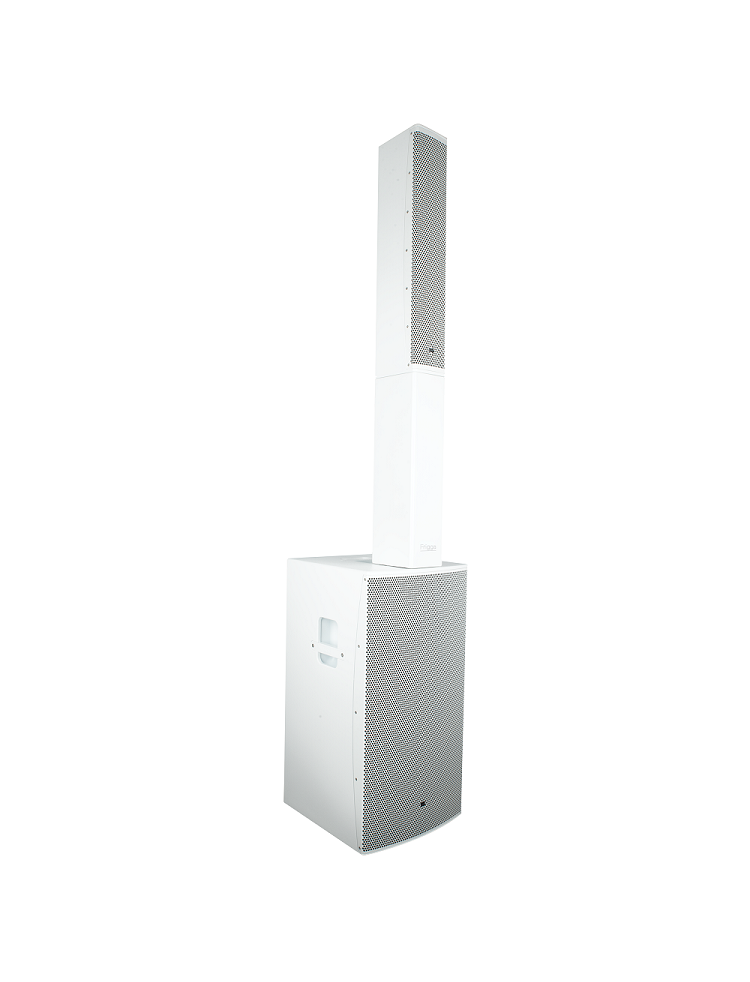

The DAP Frigga Set is an active PA speaker system with a subwoofer and column speaker, suitable for singer-songwriters, corporate presenters, mobile DJs, nightlife venues, and bands. It offers three inputs: XLR microphone input with gain and clip indicator, XLR line input with passthrough, and Bluetooth with TWS support. The mixed output combines all signals. The SUB level control and Master level adjust the balance and volume. Status LEDs indicate the amplifier status.

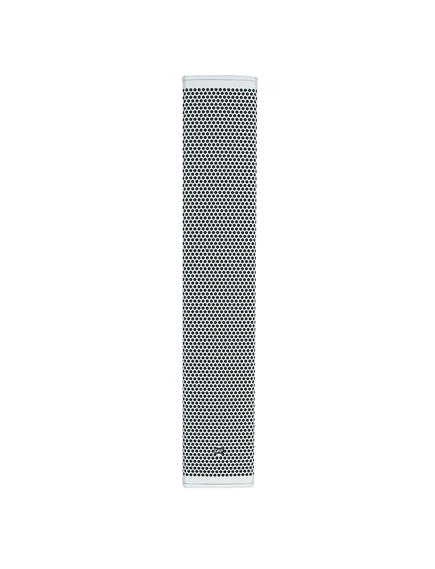

The Frigga Set features an active dual 12" subwoofer with a built-in amplifier for the column speaker. The column speaker includes six 4" neodymium midrange drivers and a 1.5" neodymium compression driver. The built-in amplifier delivers 1000 W RMS (2000 W peak) across three channels. Two mounting poles adjust the height for various setups.
The set comes with cables, mounting poles, and spacers and is available in black or white. Please note that microphone and line signals are not transmitted via Bluetooth when using TWS.
Outputs
Power Amplifier RMS Output 1000 W
Power Amplifier Peak Output 2000 W
Top Cabinet High Driver Power 250 W
Top Cabinet Low Driver Power 250 W
Subwoofer Power 500 W
Passive Output Connector Speaker Connector 4 pole
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR
Audio Specifications
THD Level < 0.3 %
Signal-to-noise Ratio > 105 dB
AD/DA Convertor Sample Rate 48 kHz
Amp Technology Class D /Class H
Speaker System Active Subwoofer/ Active Bi-amp 2-way
Speaker Sensitivity (1 W/1 m) 96 dB
Max. SPL Subwoofer at 1 m 132 dB
Max. SPL Top Cabinet at 1 m 134 dB
DSP Processor Bitrate 24-bit
Frequency Response Minimum 40 Hz
Frequency Response Maximum 20000 Hz
Woofer Diameter 12 "
Woofer Voice Coil Diameter 2.5 "
Satellite Woofer Diameter 4
Satellite Woofer Voice Coil Diameter 1
Compression Driver Diameter 1.5 "
Subwoofer Dispersion Angle (Horizontal) 360 °
Subwoofer Dispersion Angle (Vertical) 180 °
Satellite Dispersion Angle (Horizontal) 110 °
Satellite Dispersion Angle (Vertical) 30 °
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 110 W
Power Connector In Power Pro Blue
Power Connector Out powerCON Grey
Mechanical Specifications
Top Cabinet Height 765 mm
Top Cabinet Width 135 mm
Top Cabinet Depth 200 mm
Subwoofer Height 865 mm
Subwoofer Width 430 mm
Subwoofer Depth 485 mm
Material Plywood
Top Cabinet Weight 8 kg
Subwoofer Weight 25 kg
Colour White
Included Items
Included Cables Power Pro Cable, Speakercable
