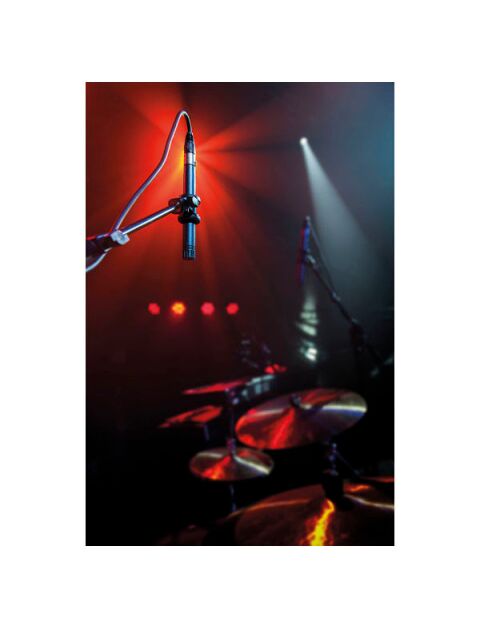

The CM-45 is a back electret condenser microphone to be used as overhead. It's suitable for mid to high frequency instruments and capable to resist high SPL without distortion. This makes it also a good overhead solution for drums. It has a low cut filter and pad switch which makes it more flexible for different situations.
Specifications
Type: Back electret, Ø16 mmPolar Pattern: Cardioid
Frequency Response: 40-20,000 Hz
Low Frequency Filter: 80 Hz, 12 dB/oct
Pad: -10 dB
Sensitivity: -43 dBV/Pa* (7.1 mV)
Max.SPL: 140 dB SPL
Impedance: 200 Ω
S/N Ratio: 69 dB
Equivalent Noise SPL: 25 dB
Dynamic Range: 115 dB
Power supply: 12-52V Phantom
Connector: 3p. XLR (male)

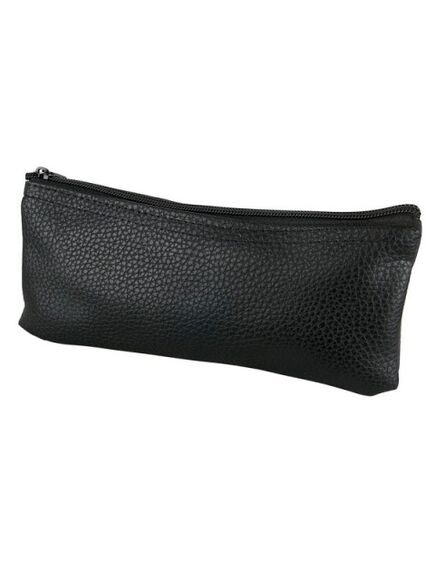

Accessories: D8946 Clip, 5/8"-3/8" Threaded Adapter, windscreen, Pouch
Dimensions: Ø20x155 mm
Net Weight: 0,3Kg
*1 Pa = 94dB SPL
